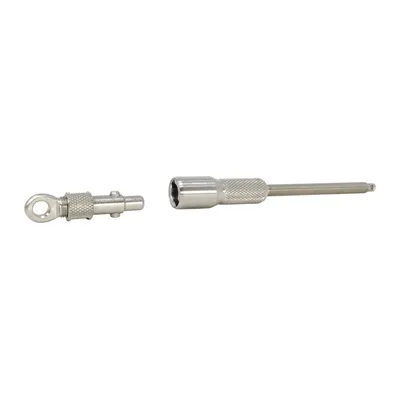

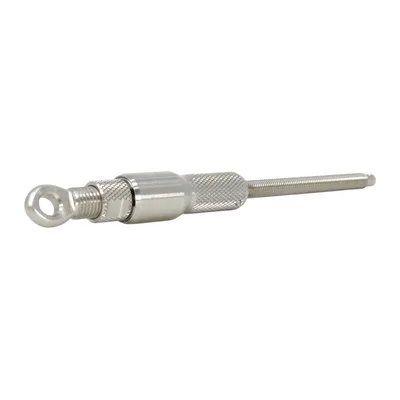

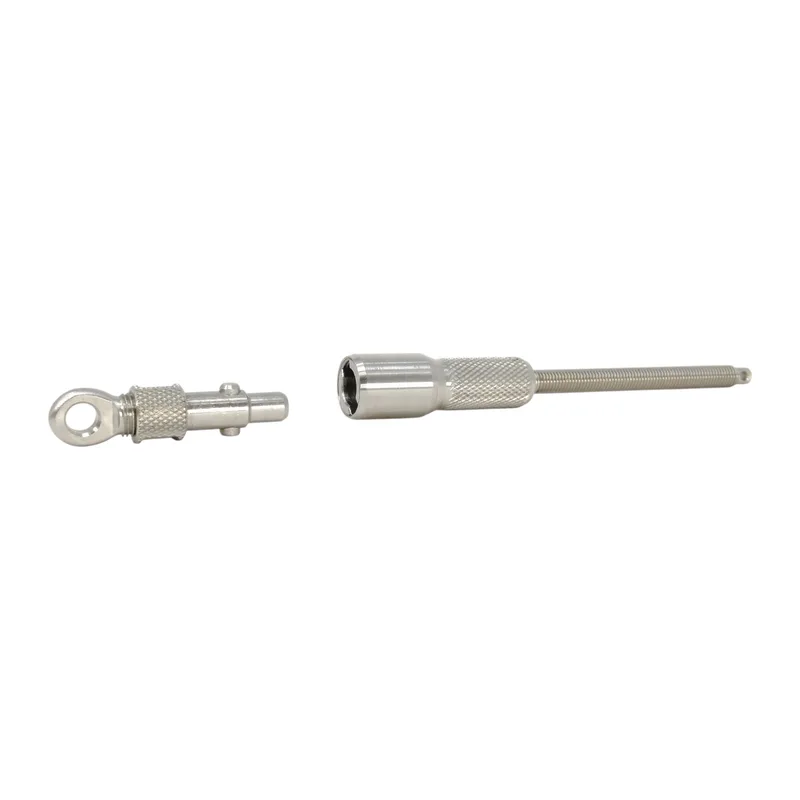

Tylaska TY3502-EYEQuickstay with Eye Connection
The Tylaska TY3502-EYE Quickstay with Eye Connection, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY3502-EYE
- Family
- Tylaska
About this part

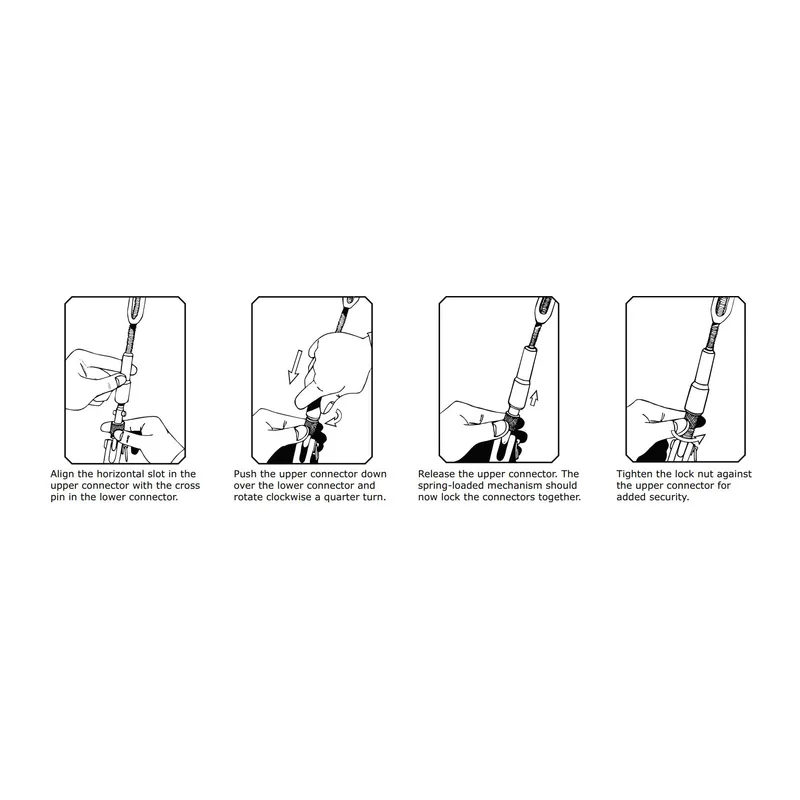

Provides an easy and fast way to connect and disconnect standing riggings such as stays or shrouds on trailerable boats.
Removes the need to fiddle with clevis pin, split rings, or cotter pins when connecting and disconnecting standing rigging.
Used in conjunction with existing turnbuckles for easy conversion.
Breaking strength- 2,200lb
Max standing rigging size- 1/8′ or 3mm
Specifications
- Weight
- 77g
- Cable size
- Up to 3mm
- Minimum Breaking Strength
- 1000kg

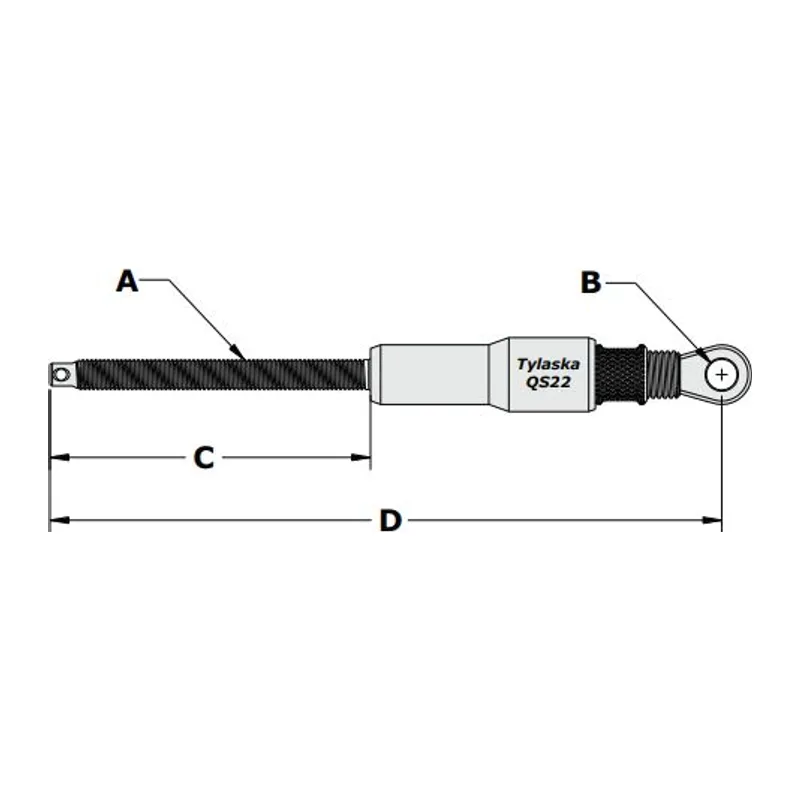

- Dimension A (see drawing)
- 1/4-28 LH
- Dimension B (see drawing)
- 6.4 mm
- Dimension C (see drawing)
- 68 mm
- Dimension D (see drawing)
- 143 mm
From the Tylaska catalogue.
