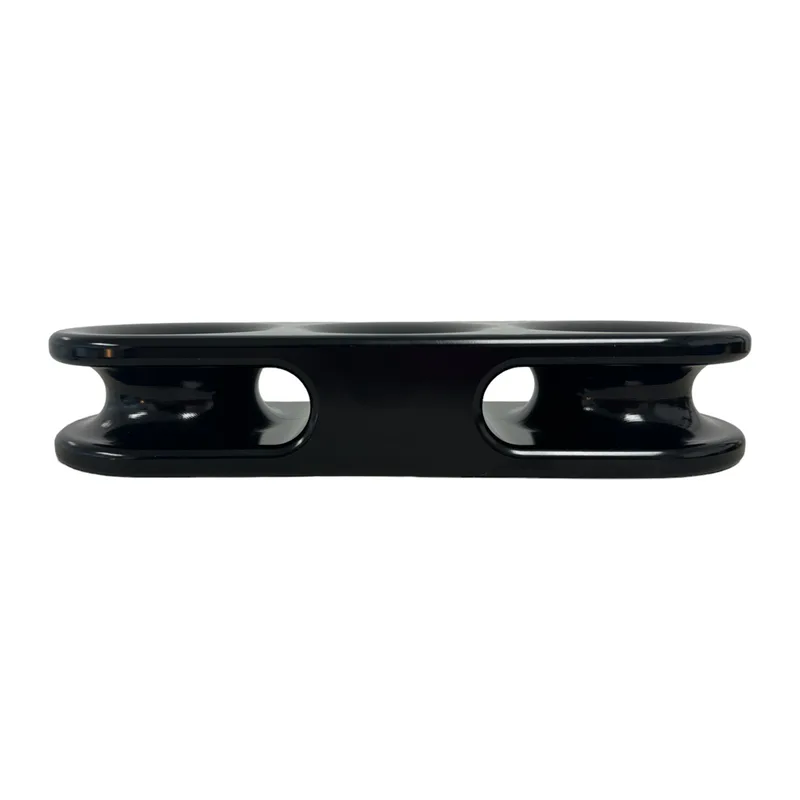

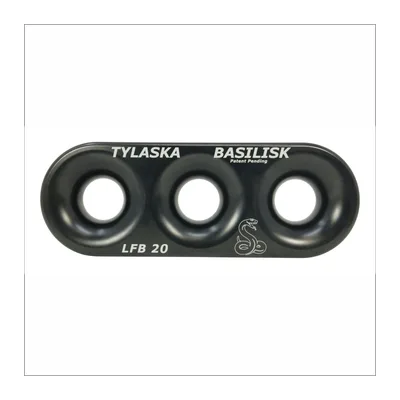

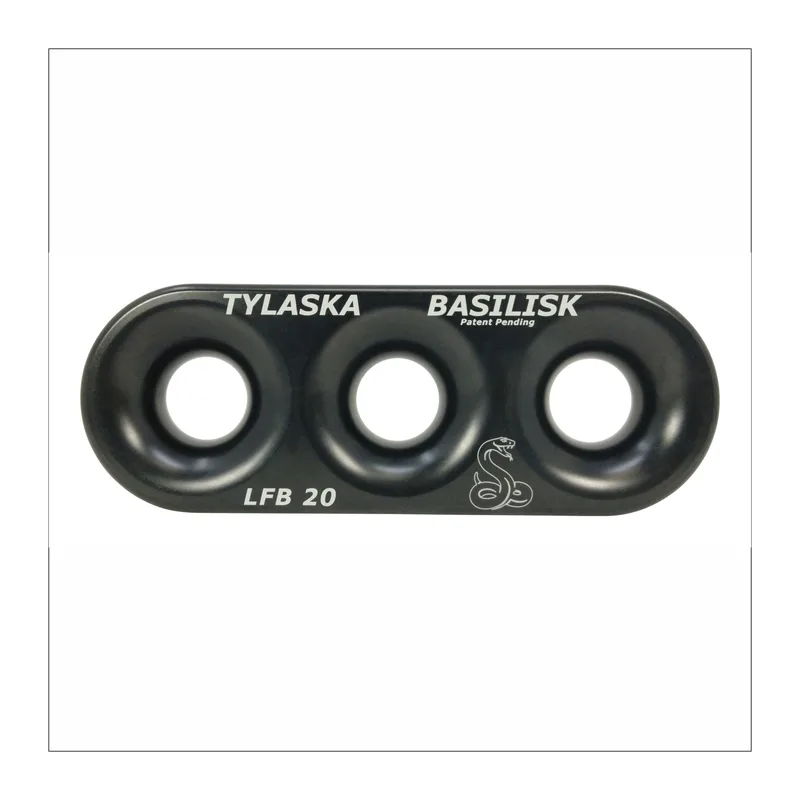

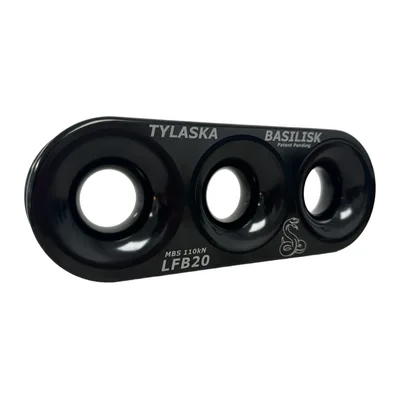

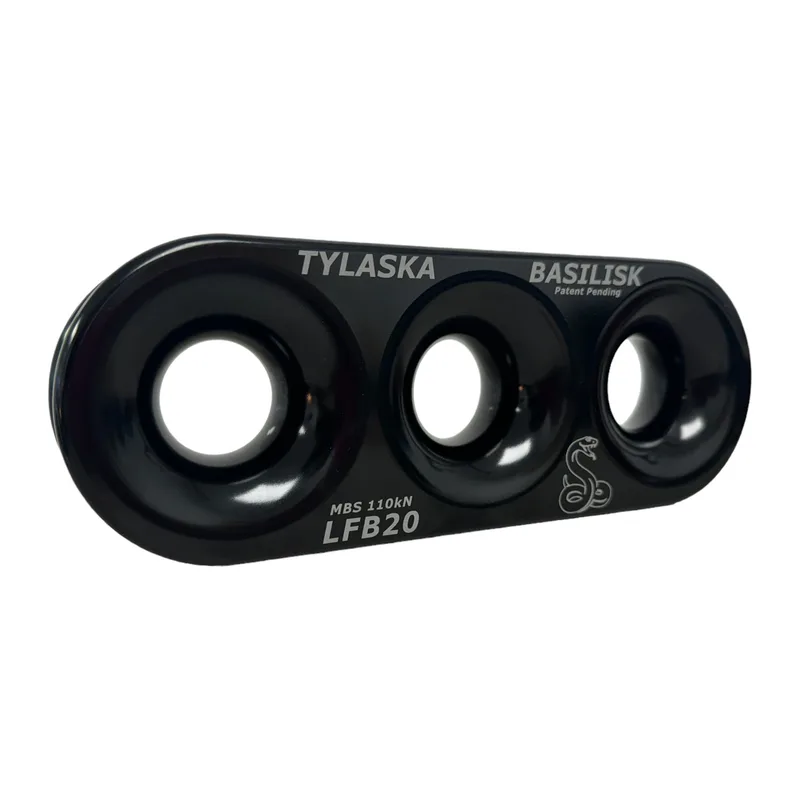

Tylaska TY6120LFB 20 Basilisk Rigging Block
The Tylaska TY6120 LFB 20 Basilisk Rigging Block, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY6120
- Family
- Tylaska
About this part
LFB 20 “Basilisk”
The LFB 28 “Basilisk” adds friction to the rigging system at the top of the tree. That added friction reduces the shock forces on the anchor point as well as reducing the strain on your ground crew. You can use the Basilisk in any situation where you would traditionally use a block or single ring but desire more control. Vary the amount of friction provided simply by running the rope through any variation of the 3 holes to adjust for the load. In addition, its 2 captive sling rigging points ensure that it will always stay attached no matter the situation.
110 kN MBS
Max sling line diameter 20mm
Max working line diameter 20mm
2 captive sling rigging points
Maximum bend radius
6061 aluminum
Excellent frictional heat dissipation
Type III mil-spec hard-coat anodized
Please contact our knowledgeable dealers for splicing or more information!
Specifications
- Weight
- 1.18 kg
- Minimum Breaking Strength
- 110 kN
- Dimension A (see drawing)
- 23.9 mm
- Dimension B (see drawing)
- 33 mm
- Dimension C (see drawing)
- 44 mm
- Dimension D (see drawing)
- 241.5 mm
- Dimension E (see drawing)
- 87.6 mm
From the Tylaska catalogue.
