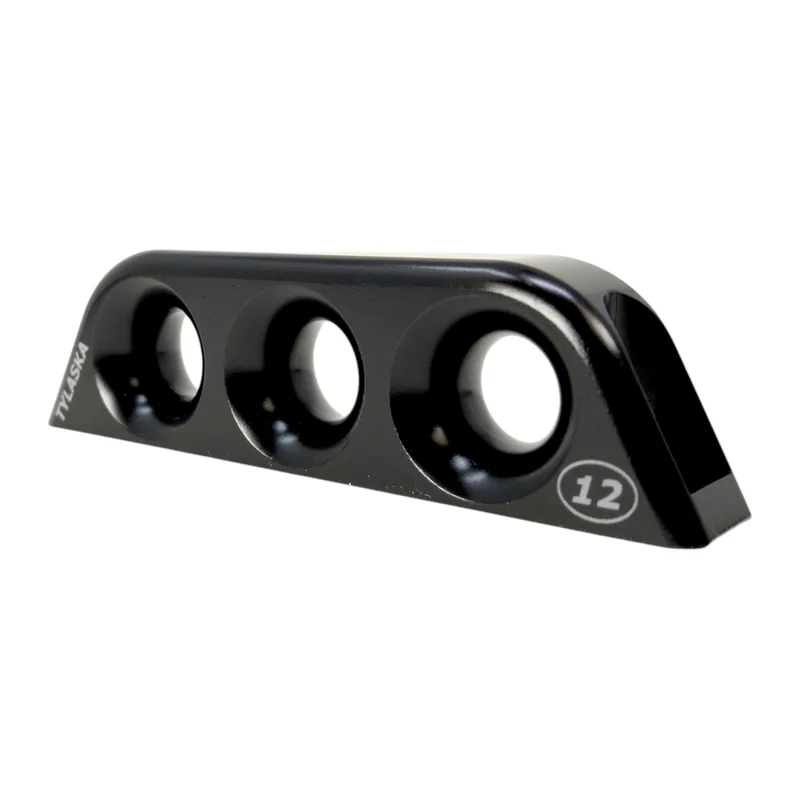

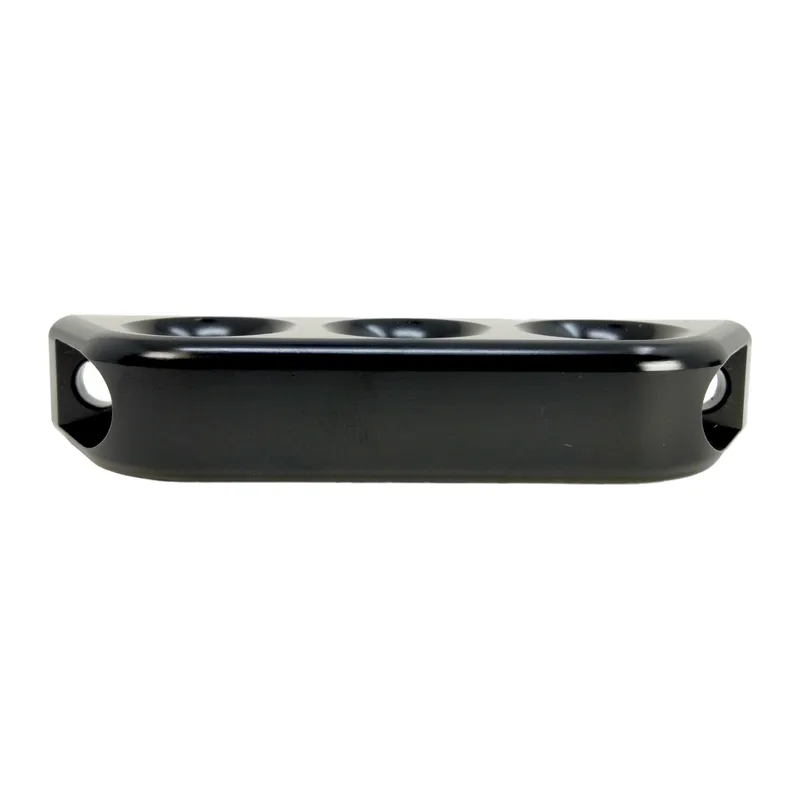

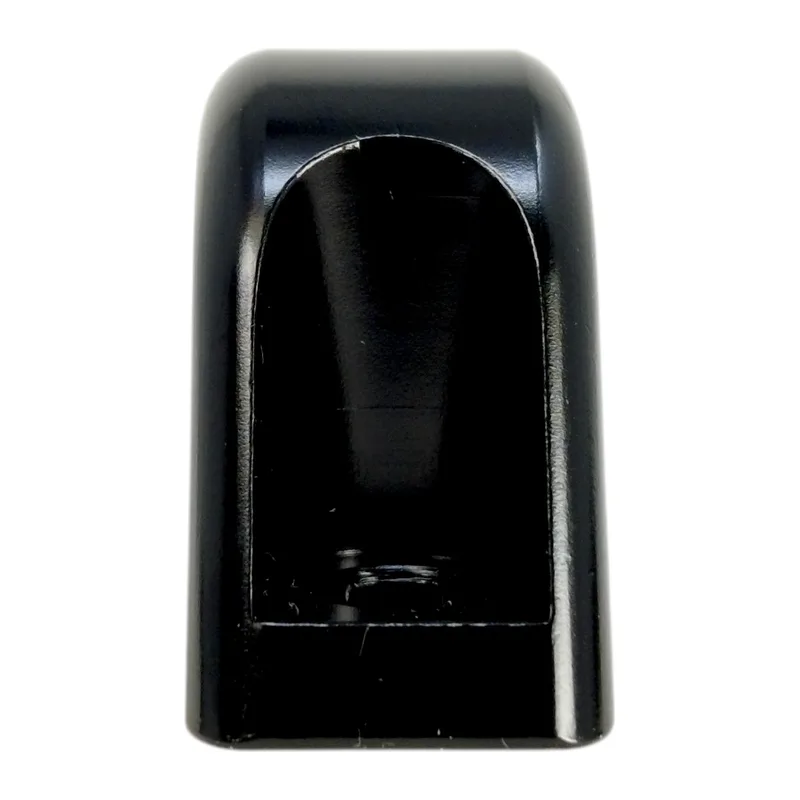

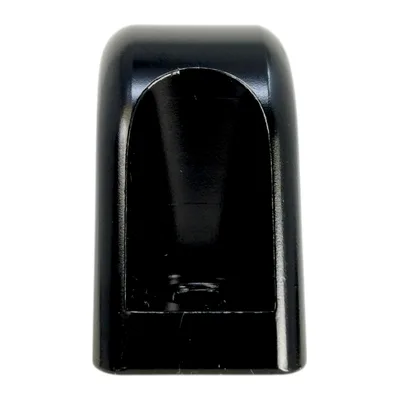

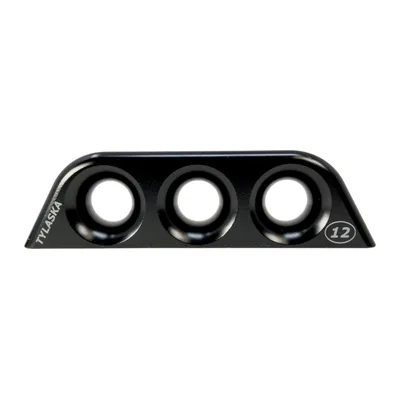

Tylaska TY7012-312mm Triple Hole Bolt-down Fairlead
The Tylaska TY7012-3 12mm Triple Hole Bolt-down Fairlead, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY7012-3
- Family
- Tylaska
About this part
Maximum bend radius
6061 aluminum
Excellent frictional heat dissipation
Type III mil-spec hard-coat anodized
Specifications
- Weight
- 73 g
- Breaking Load
- 2000 kg
- Max Working Load
- 1000 kg
- Fasteners
- 6 SH mm
- Max Line Size
- 10 mm

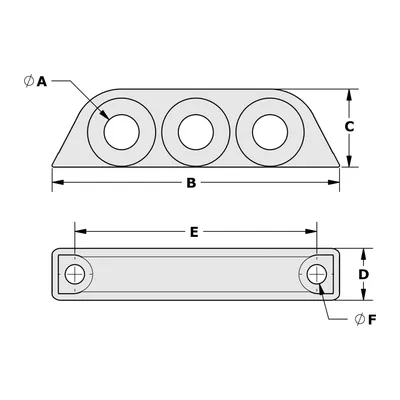

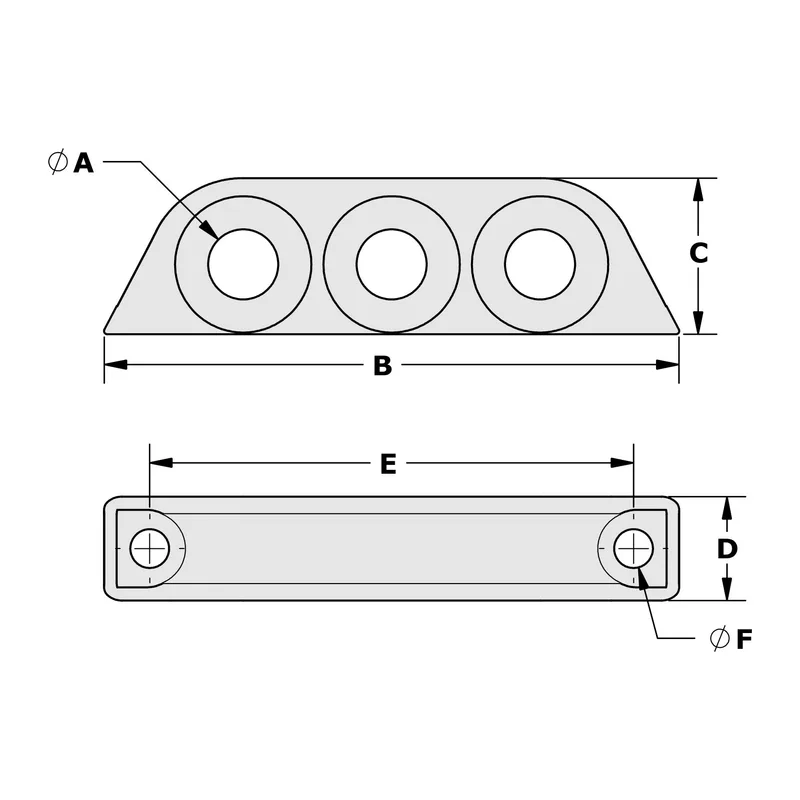

- Dimension A (see drawing)
- 12 mm
- Dimension B (see drawing)
- 98.5 mm
- Dimension C (see drawing)
- 26.7 mm
- Dimension D (see drawing)
- 17.8 mm
- Dimension E (see drawing)
- 82.8 mm
- Dimension F (see drawing)
- 6.6 mm
From the Tylaska catalogue.
