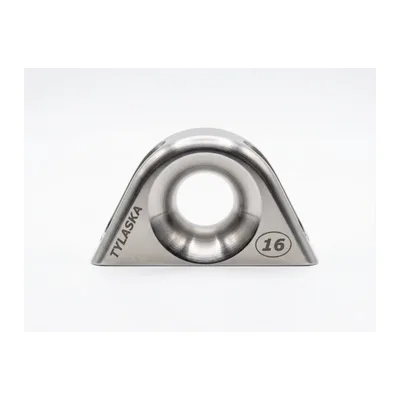

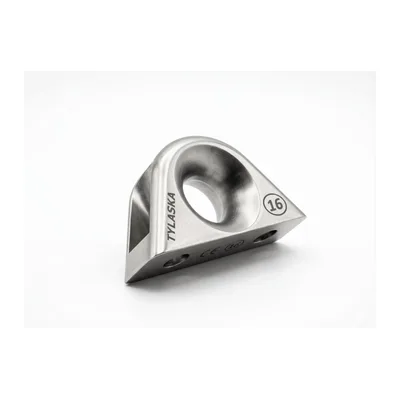

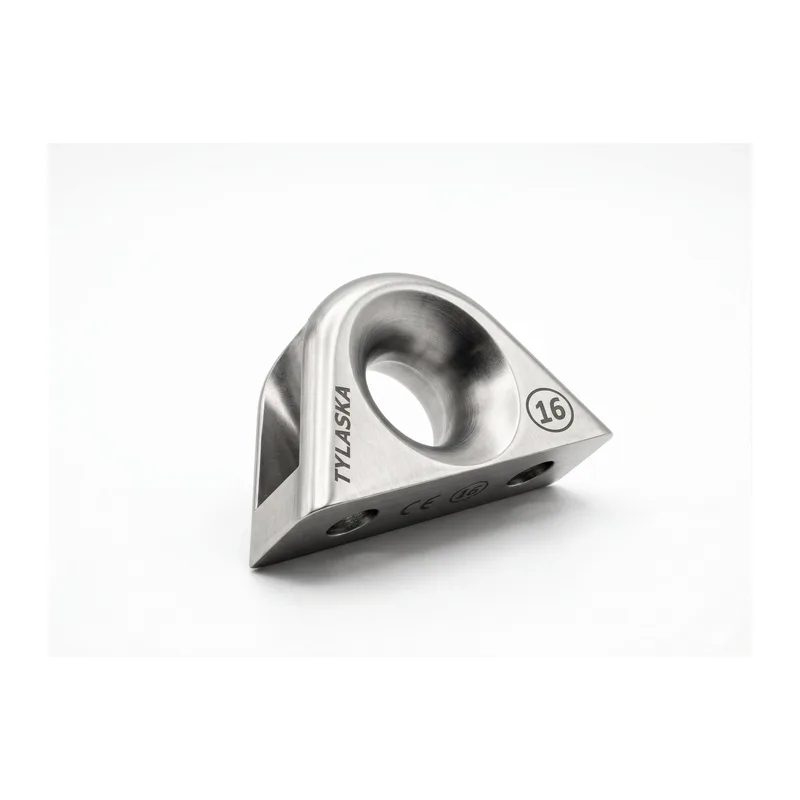

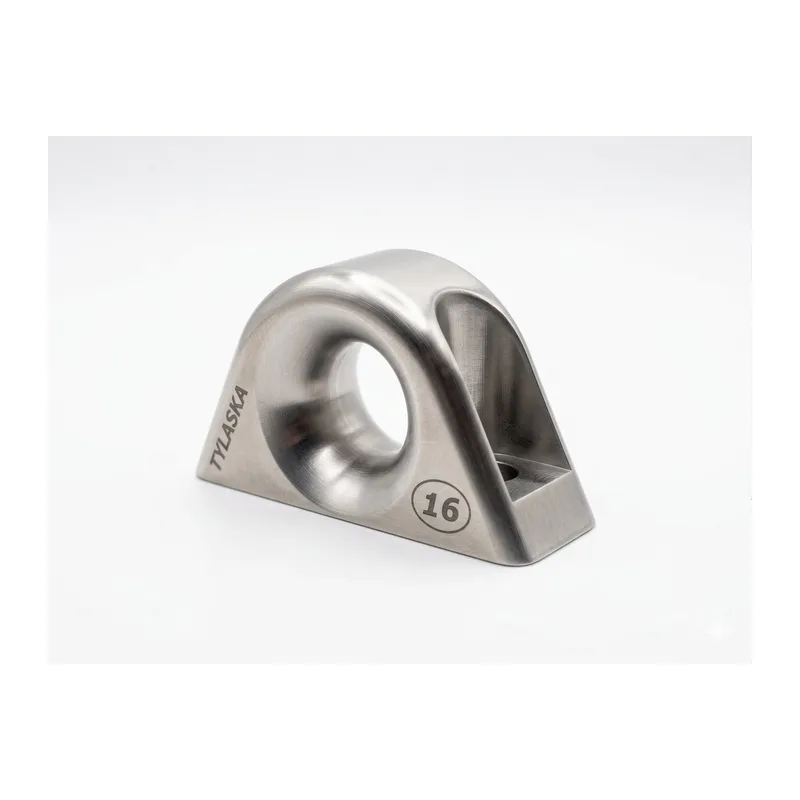

Tylaska TY7016-1-TI 16mm Titanium Bolt-down Fairlead (Single)

Tylaska TY7016-1-TI 16mm Titanium Bolt-down Fairlead (Single)

Tylaska TY7016-1-TI 16mm Titanium Bolt-down Fairlead (Single)

Tylaska TY7016-1-TI 16mm Titanium Bolt-down Fairlead (Single)

Tylaska TY7016-1-TI16mm Titanium Bolt-down Fairlead (Single)

The Tylaska TY7016-1-TI 16mm Titanium Bolt-down Fairlead (Single), sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.

$139.75

Ships in about 3 business days, plus transit.

Returns within 30 days of delivery. Returns and exchanges

Compare

Part number: TY7016-1-TI
Family: Tylaska

About this part

Carbon rig compatible Titanium

Premium Grade 5 Titanium construction

Corrosion Resistant

Specifications

Weight: 52 g
Breaking Load: 3600 kg
Max Working Load: 1800 kg
Fasteners: 8 SH mm
Max Line Size: 14 mm
Dimension A (see drawing): 16 mm
Dimension B (see drawing): 63 mm
Dimension C (see drawing): 35 mm
Dimension D (see drawing): 21.8 mm
Dimension E (see drawing): 37 mm
Dimension F (see drawing): 8.2 mm

From the Tylaska catalogue.
