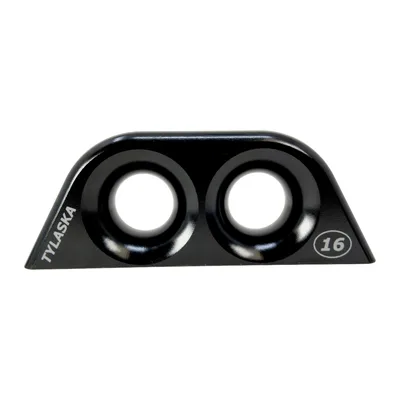

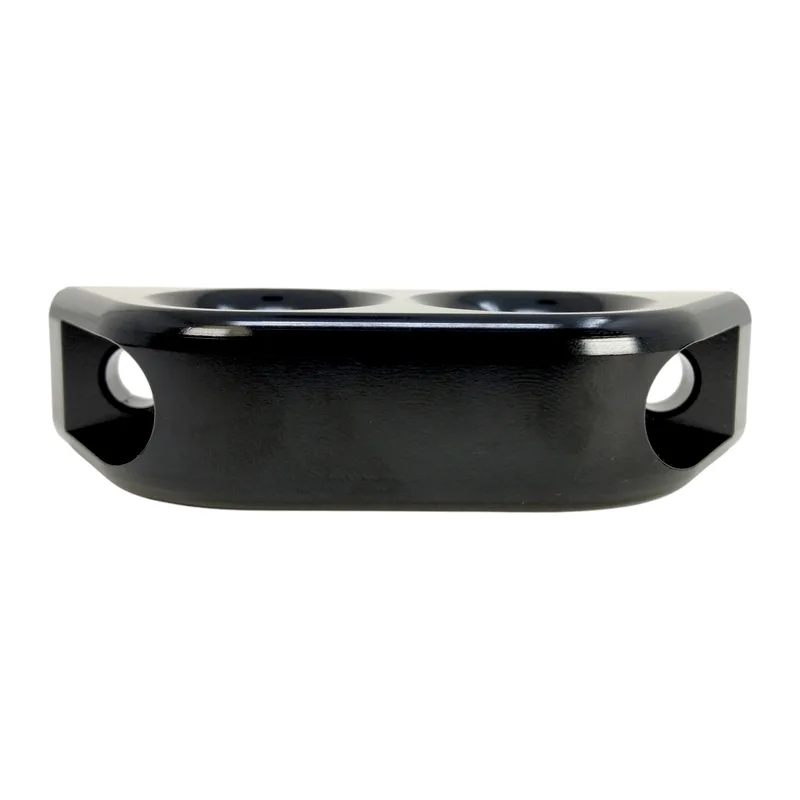

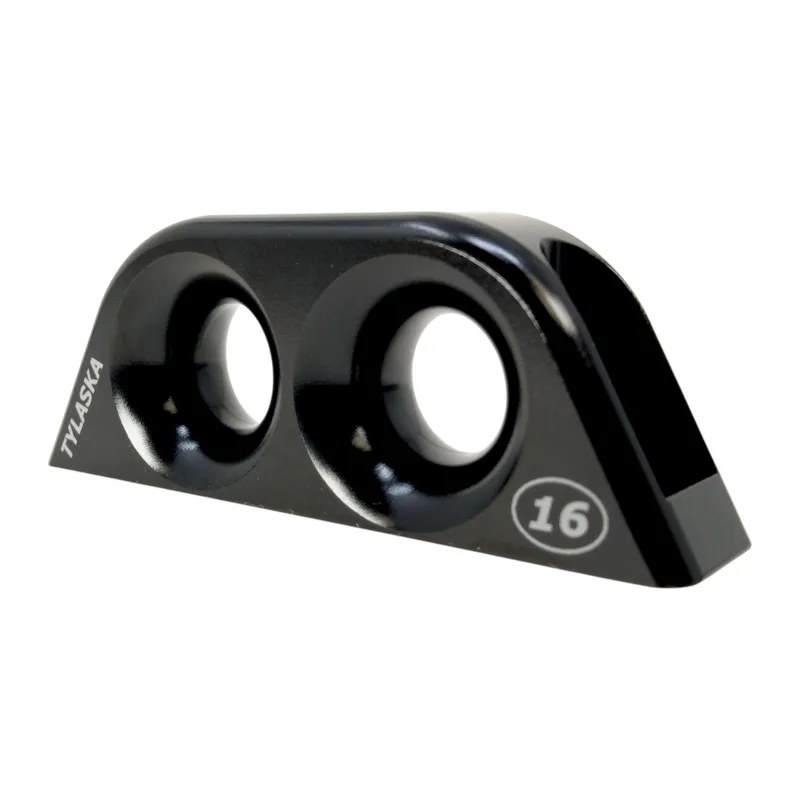

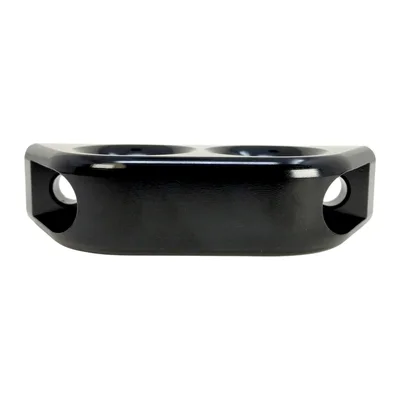

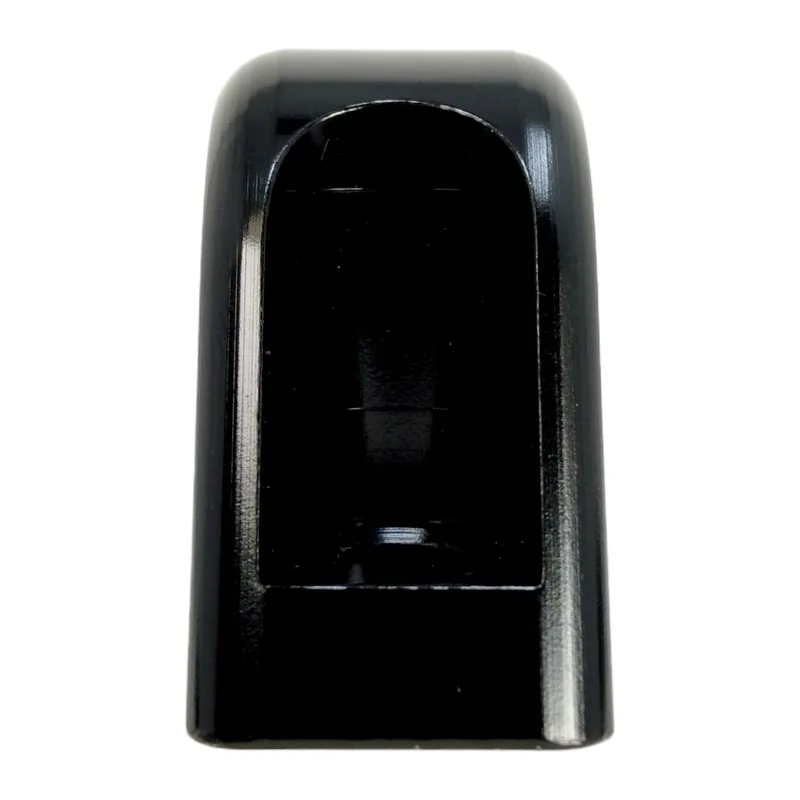

Tylaska TY7016-216mm Double Hole Bolt-down Fairlead
The Tylaska TY7016-2 16mm Double Hole Bolt-down Fairlead, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY7016-2
- Family
- Tylaska
About this part
Maximum bend radius
6061 aluminum
Excellent frictional heat dissipation
Type III mil-spec hard-coat anodized
Specifications
- Weight
- 97 g
- Breaking Load
- 3600 kg
- Max Working Load
- 1800 kg
- Fasteners
- 8 SH mm
- Max Line Size
- 14 mm
- Dimension A (see drawing)
- 16 mm
- Dimension B (see drawing)
- 93.5 mm
- Dimension C (see drawing)
- 35 mm
- Dimension D (see drawing)
- 21.8 mm
- Dimension E (see drawing)
- 67.5 mm
- Dimension F (see drawing)
- 8.2 mm
From the Tylaska catalogue.
