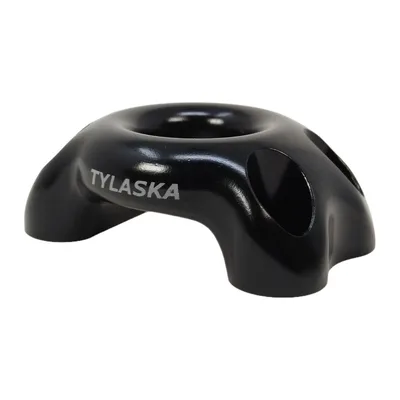

Tylaska TY7106Cyclops Series 6mm Deck Padeye
The Tylaska TY7106 Cyclops Series 6mm Deck Padeye, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY7106
- Family
- Tylaska
About this part
Continuous interior radius
Multiple rigging options
Hard coat anodized
Low profile
Anti-snag
Specifications
- Mounting Hardware
- 4 X M6
- Max Working Load
- 1500 kg
- Recommended Line Size
- 6 mm
- Weight
- 58 g
- Dimension A (see drawing)
- 21 mm
- Dimension B (see drawing)
- 10 mm
- Dimension C (see drawing)
- 44 mm
- Dimension D (see drawing)
- 60.5 mm
- Dimension E (see drawing)
- 22 mm
From the Tylaska catalogue.
