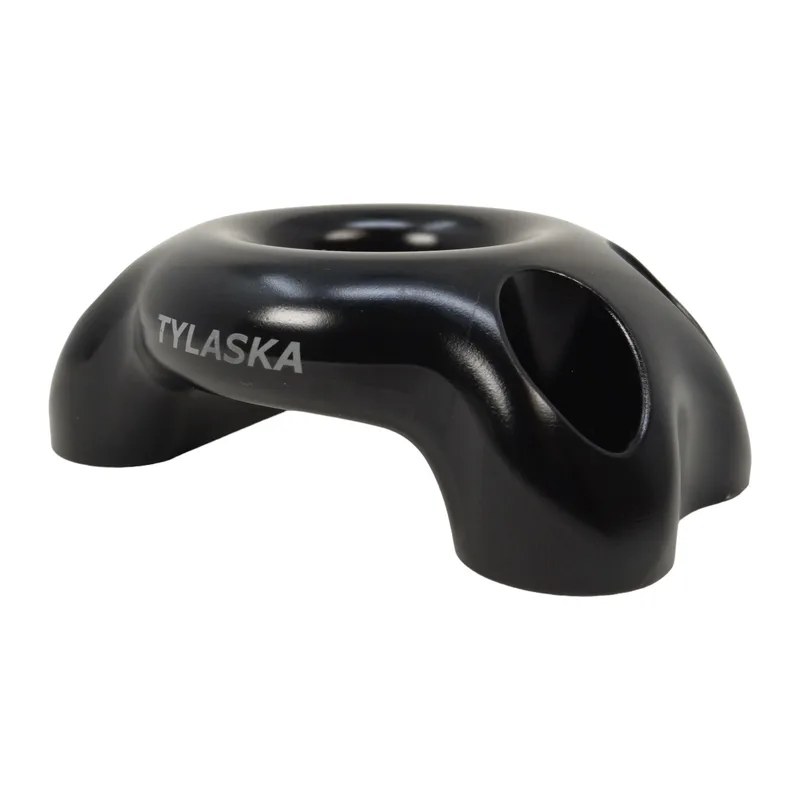

Tylaska TY7110Cyclops Series 10mm Deck Padeye
The Tylaska TY7110 Cyclops Series 10mm Deck Padeye, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY7110
- Family
- Tylaska
About this part
Continuous interior radius
Multiple rigging options
Hard coat anodized
Low profile
Anti-snag
Specifications
- Mounting Hardware
- 4 X M10
- Max Working Load
- 4200 kg
- Recommended Line Size
- 10 mm
- Weight
- 250 g
- Dimension A (see drawing)
- 35 mm
- Dimension B (see drawing)
- 16 mm
- Dimension C (see drawing)
- 73 mm
- Dimension D (see drawing)
- 99.5 mm
- Dimension E (see drawing)
- 35.5 mm
From the Tylaska catalogue.
