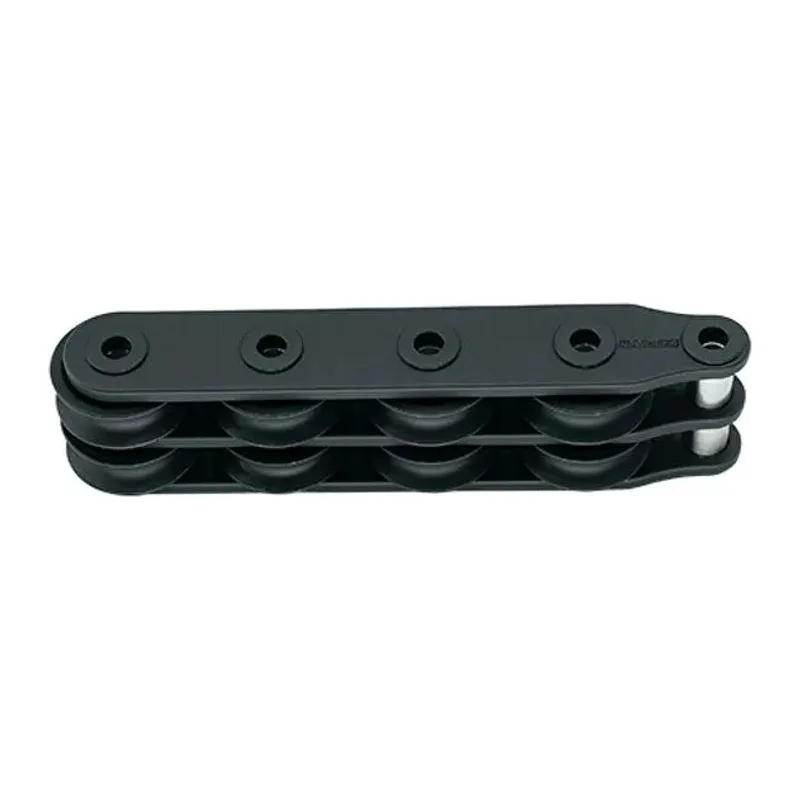

    Harken 9018 50mm Double Big Boat Deck Organizer - 4 Sheave
    Harken 9018

    50mm Double Big Boat Deck Organizer - 4 Sheave

    The Harken 9018 50mm Double Big Boat Deck Organizer - 4 Sheave, sold at Harken's advertised price by One Design Rigging, an authorized Harken dealer. Ships in about 3 business days.

    $506.95List $576.05

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    9018
    UPC
    097653297697
    Harken catalogue
    Page 85

    Harken 2026 catalogue, page

    Open the whole catalogue (PDF)
    Family
    Small Boat and Midrange

    Specifications

    Sheave diameter
    50 mm2 in
    Length
    248 mm9.8 in
    Weight
    1052 g37 oz
    Max line diameter
    12 mm1/2 in
    Max working load
    2200 kg4850 lb
    Breaking load
    4400 kg9700 lb

    From the Harken 2026 catalogue.
