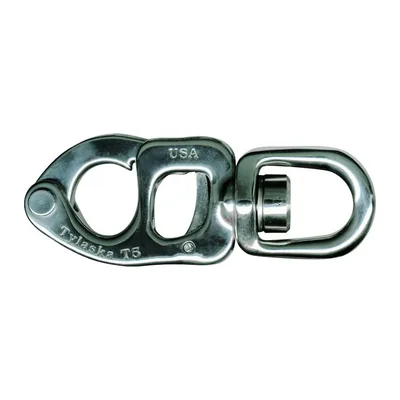

Tylaska TY1005-S T5 Standard Bail Trigger Snap Shackle, Polished Stainless
The Tylaska TY1005-S T5 Standard Bail Trigger Snap Shackle, Polished Stainless, sold at 30% off Tylaska's list price by One Design Rigging, an authorized Tylaska dealer.
Not on our deck maps. Ask if it fits your class
Finish
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY1005-S
- Family
- Tylaska
About this part
Tylaska T5 Trigger Snap Shackle are perfect for small boat applications requiring high strength and low weight. Ideal for 20-30 foot boats.
Specifications
- Breaking Load
- 2270 kg
- Working Load Limit
- 1130 kg
- Weight
- 61 g
- Dimension A (see drawing)
- 13.5 mm
- Dimension B (see drawing)
- 12.7 mm
- Dimension C (see drawing)
- 76.7 mm
From the Tylaska catalogue.
