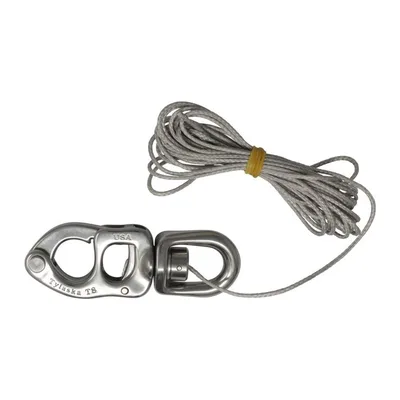

Tylaska TY1005-S-MBT5 Standard Bail Trigger Snap Shackle – Martin Breaker
The Tylaska TY1005-S-MB T5 Standard Bail Trigger Snap Shackle – Martin Breaker, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY1005-S-MB
- Family
- Tylaska
About this part
For boats 20-30ft
Breaking load – 5,000 lb
100% proof tested to max working load
Heat treated 17-4 PH stainless steel
Dyneema cord for remote release
Specifications
- Breaking Load
- 2270 kg
- Working Load Limit
- 1130 kg
- Weight
- 61 g
- Dimension A (see drawing)
- 13.5 mm
- Dimension B (see drawing)
- 12.7 mm
- Dimension C (see drawing)
- 76.7 mm
From the Tylaska catalogue.
