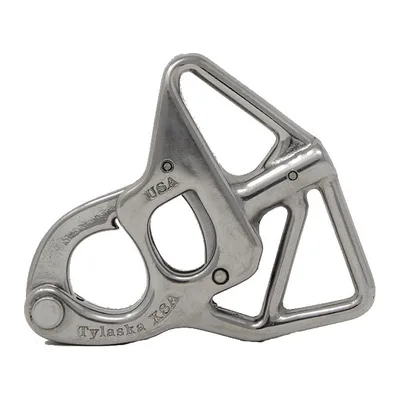

    Tylaska TY1008-X8A Tack Shackle X8A
    Tylaska TY1008-X8A Tack Shackle X8A

    Tylaska TY1008-X8ATack Shackle X8A

    The Tylaska TY1008-X8A Tack Shackle X8A, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.

    $254.10

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    TY1008-X8A
    Family
    Tylaska

    About this part

    Easy to install

    Stays in place without shifting

    One hand operation

    Releasable under load

    Weight – 3.4 oz

    Working Load Limit – 4,000 lb

    Breaking Load – 8,000 lb

    Specifications

    Breaking Load
    3630 kg
    Working Load Limit
    1810 kg
    Weight
    97 g

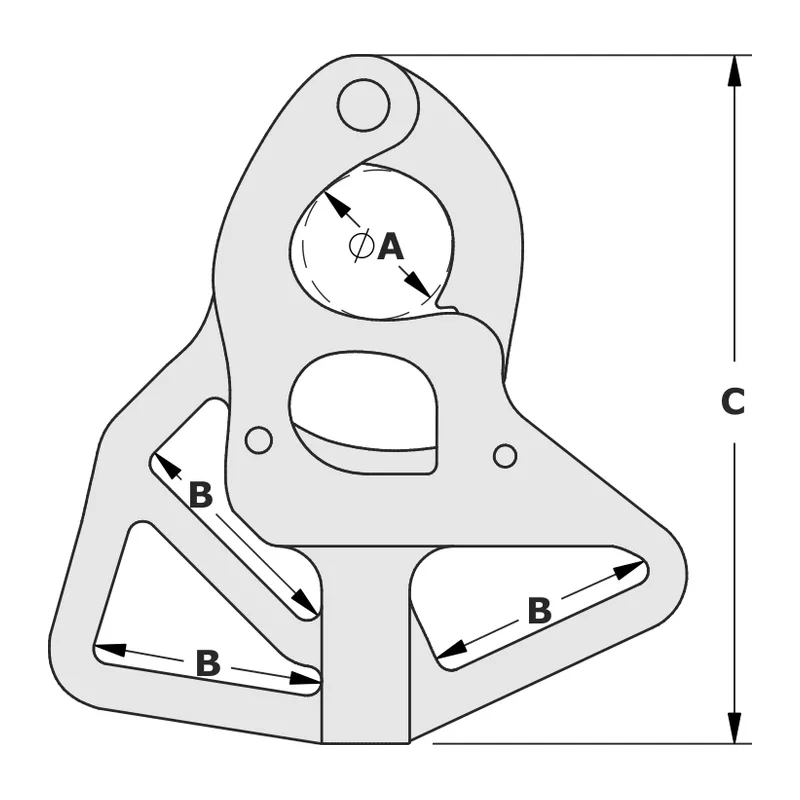

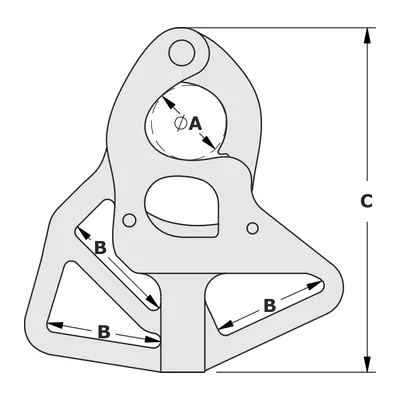

    Dimension A (see drawing)
    16 mm
    Dimension B (see drawing)
    24.6 mm
    Dimension C (see drawing)
    73.8 mm

    From the Tylaska catalogue.
