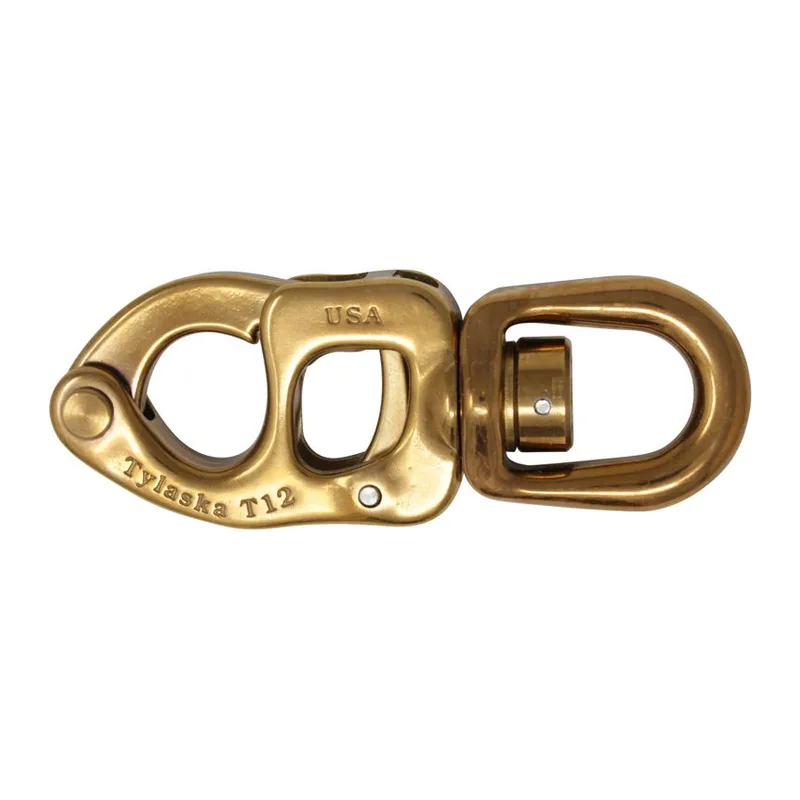

Tylaska TY1012-S-BRZ T12 Standard Bail Trigger Snap Shackle, PVD Bronze

Tylaska TY1012-S-BRZ T12 Standard Bail Trigger Snap Shackle, PVD Bronze

Tylaska TY1012-S-BRZ T12 Standard Bail Trigger Snap Shackle, PVD Bronze

Tylaska TY1012-S-BRZ T12 Standard Bail Trigger Snap Shackle, PVD Bronze

Tylaska TY1012-S-BRZT12 Standard Bail Trigger Snap Shackle, PVD Bronze

The Tylaska TY1012-S-BRZ T12 Standard Bail Trigger Snap Shackle, PVD Bronze, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.

$373.05

Finish

Black Oxide Stainless Polished StainlessPVD Bronze

Ships in about 3 business days, plus transit.

Returns within 30 days of delivery. Returns and exchanges

Compare

Part number: TY1012-S-BRZ
Family: Tylaska

About this part

For boats 30-45ft

Breaking load – 12,000 lb

100% proof tested to max working load

Heat treated 17-4 PH stainless steel

Available in standard, large and clevis bail types

Also available in black oxide and bronze finish

Specifications

Breaking Load: 5440 kg
Working Load Limit: 2720 kg
Weight: 167 g
Dimension A (see drawing): 18 mm
Dimension B (see drawing): 18.2 mm
Dimension C (see drawing): 104 mm

From the Tylaska catalogue.
