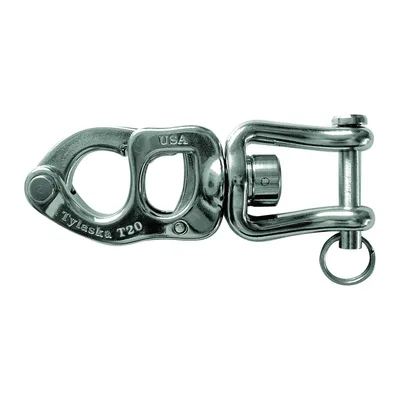

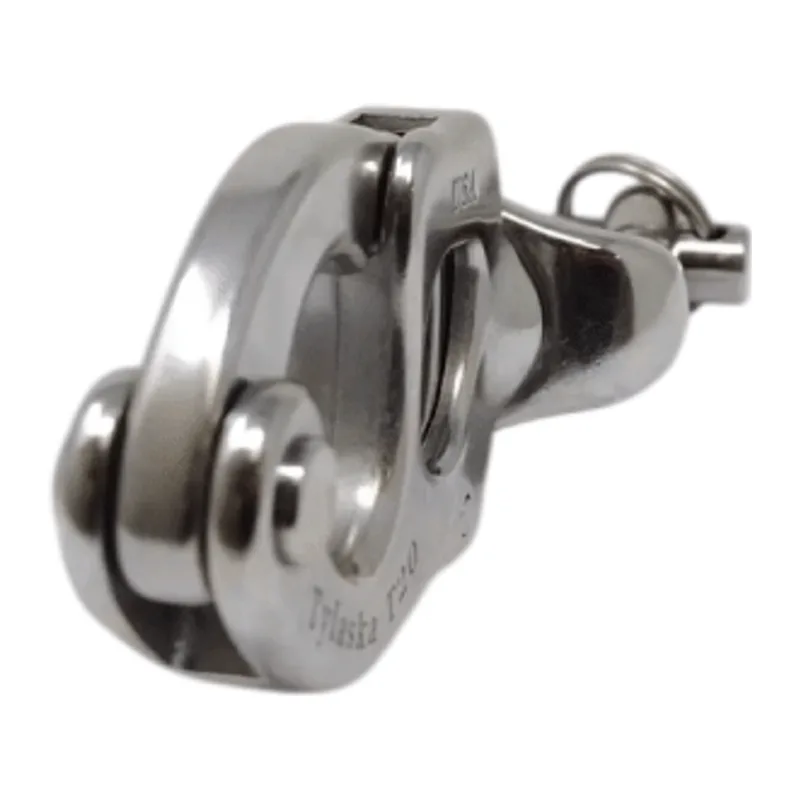

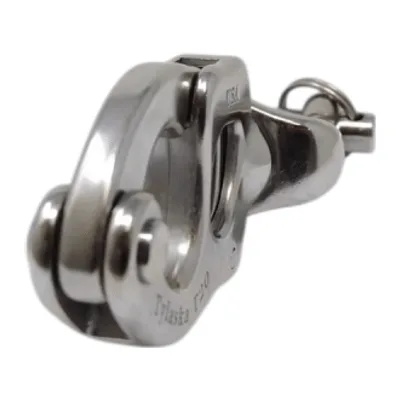

Tylaska TY1020-CMT20 Clevis Bail Trigger Snap Shackle – 10mm Pin
The Tylaska TY1020-CM T20 Clevis Bail Trigger Snap Shackle – 10mm Pin, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY1020-CM
- Family
- Tylaska
About this part
For boats 40-70ft
Breaking load – 20,000lb
100% proof tested to max working load
Heat treated 17-4 PH stainless steel
Specifications
- Breaking Load
- 9070 kg
- Working Load Limit
- 4540 kg
- Weight
- 431 g

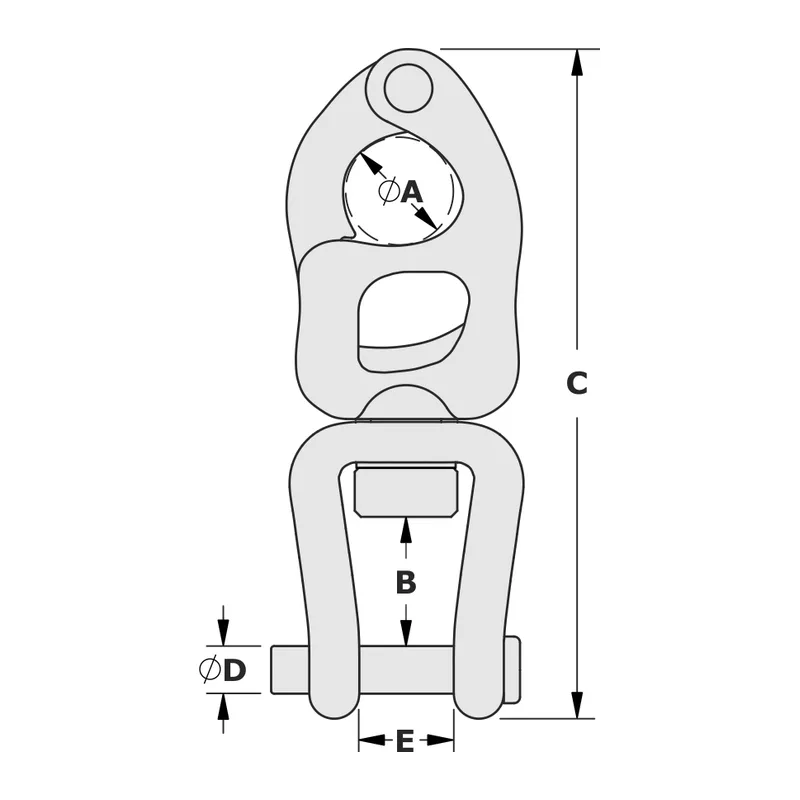

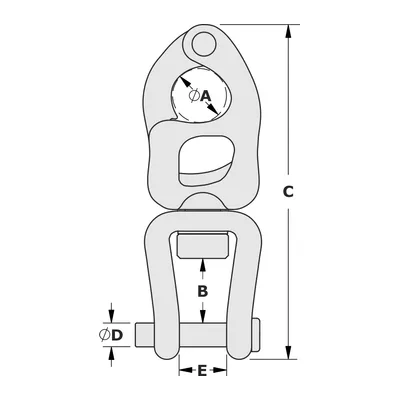

- Dimension A (see drawing)
- 25.1 mm
- Dimension B (see drawing)
- 28.9 mm
- Dimension C (see drawing)
- 142 mm
- Dimension D (see drawing)
- 10 mm
- Dimension E (see drawing)
- 20.3 mm
From the Tylaska catalogue.
