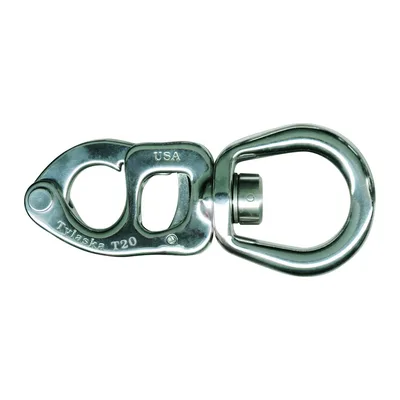

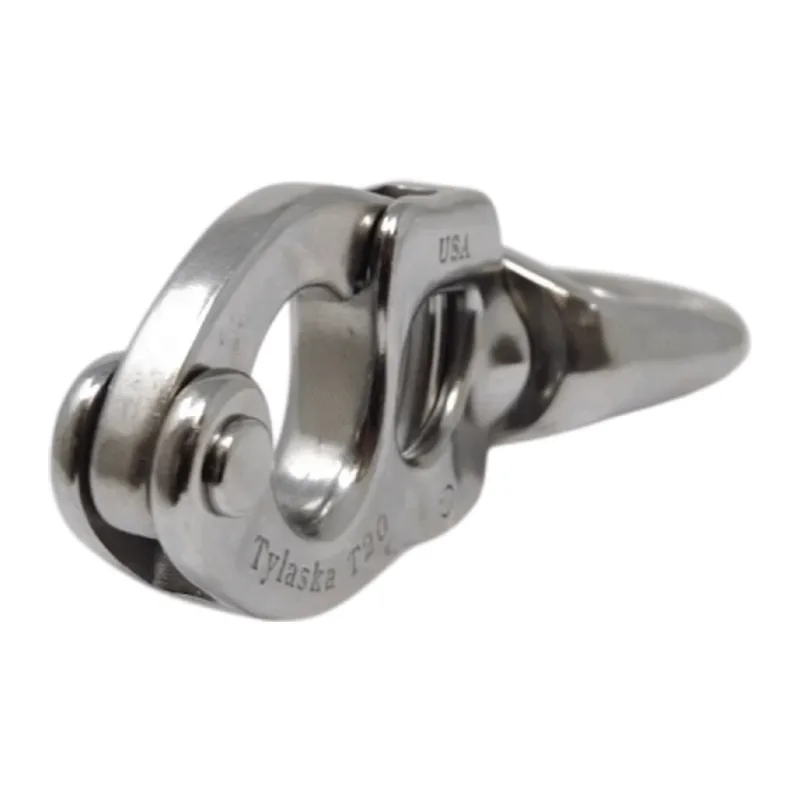

    Tylaska TY1020-L T20 Large Bail Trigger Snap Shackle
    Tylaska TY1020-L T20 Large Bail Trigger Snap Shackle
    Tylaska TY1020-L T20 Large Bail Trigger Snap Shackle

    Tylaska TY1020-LT20 Large Bail Trigger Snap Shackle

    The Tylaska TY1020-L T20 Large Bail Trigger Snap Shackle, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.

    $416.69

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    TY1020-L
    Family
    Tylaska

    About this part

    For boats 40-70ft

    Breaking load – 20,000lb

    100% proof tested to max working load

    Heat treated 17-4 PH stainless steel

    Specifications

    Breaking Load
    9070 kg
    Working Load Limit
    4540 kg
    Weight
    451 g
    Dimension A (see drawing)
    25.1 mm
    Dimension B (see drawing)
    35.3 mm
    Dimension C (see drawing)
    147 mm

    From the Tylaska catalogue.
