Tylaska TY1030-CR-MBT30 Clevis Bail Trigger Snap Shackle – Martin Breaker
The Tylaska TY1030-CR-MB T30 Clevis Bail Trigger Snap Shackle – Martin Breaker, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY1030-CR-MB
- Family
- Tylaska
About this part
2mm Remote trigger release line
9/16″ Pin Size
For boats 60+ft
Breaking load – 30,000lb
100% proof test to max working load
Heat treated 17-4 PH stainless steel
Special Order item please allow for additional build time
Specifications
- Breaking Load
- 13610 kg
- Working Load Limit
- 6800 kg
- Weight
- 899 g

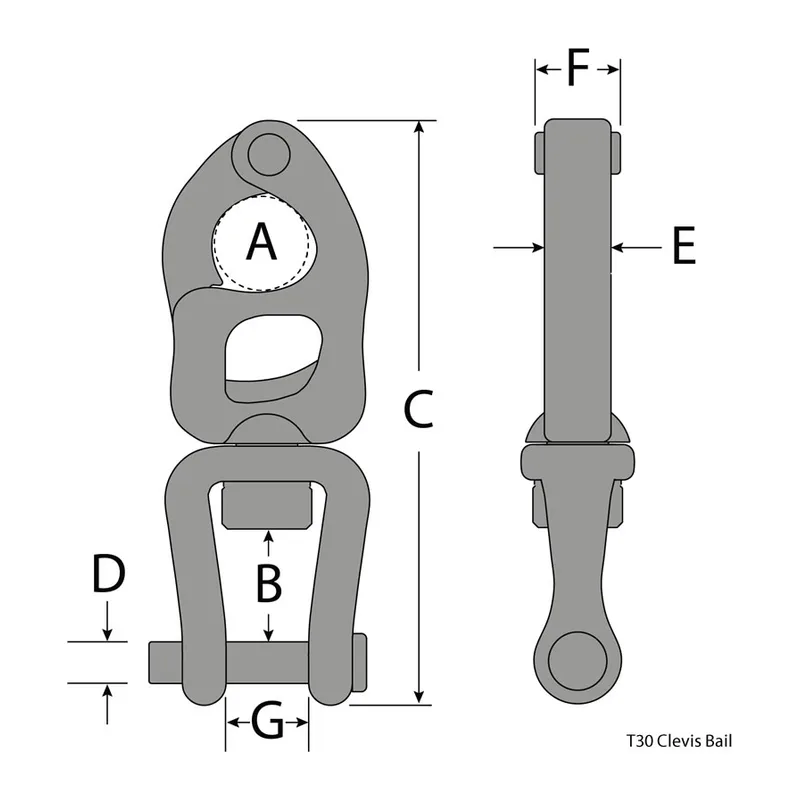

- Dimension A (see drawing)
- 31.2 mm
- Dimension B (see drawing)
- 32.8 mm
- Dimension C (see drawing)
- 176 mm
- Dimension D (see drawing)
- 14.3 mm
- Dimension E (see drawing)
- 26.2 mm
From the Tylaska catalogue.
