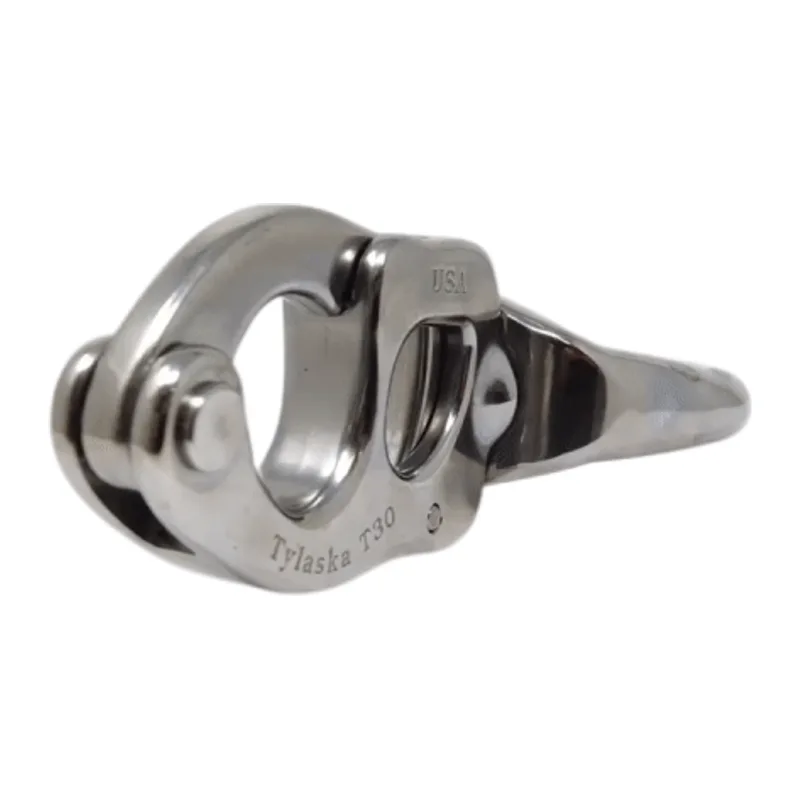

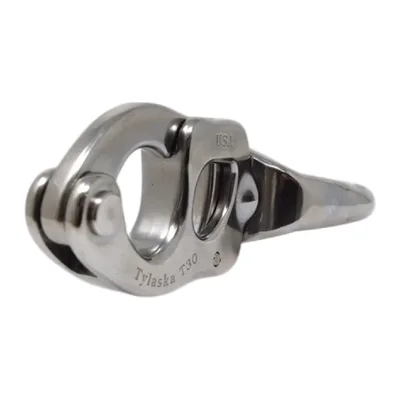

    Tylaska TY1030-L T30 Large Bail Trigger Snap Shackle
    Tylaska TY1030-L T30 Large Bail Trigger Snap Shackle
    Tylaska TY1030-L T30 Large Bail Trigger Snap Shackle

    Tylaska TY1030-LT30 Large Bail Trigger Snap Shackle

    The Tylaska TY1030-L T30 Large Bail Trigger Snap Shackle, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.

    $759.94

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    TY1030-L
    Family
    Tylaska

    About this part

    For boats 60ft+

    Breaking load – 30,000 lb

    100% proof tested to max working load

    Heat treated 17-4 PH stainless steel

    Optional locking pin

    Specifications

    Breaking Load
    13610 kg
    Working Load Limit
    6800 kg
    Weight
    989 g
    Dimension A (see drawing)
    31.2 mm
    Dimension B (see drawing)
    44.8 mm
    Dimension C (see drawing)
    186 mm

    From the Tylaska catalogue.
