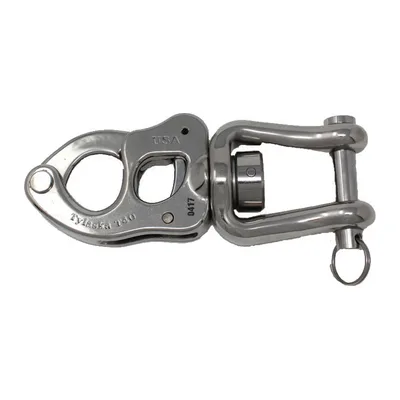

Tylaska TY1040-CRT40 Clevis Bail Trigger Snap Shackle – 3/4″ Pin
The Tylaska TY1040-CR T40 Clevis Bail Trigger Snap Shackle – 3/4″ Pin, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY1040-CR
- Family
- Tylaska
About this part
For boats 100ft+
Breaking load – 40,000 lb
100% proof tested to max working load
Heat treated 17-4 PH stainless steel
Included trigger-locking pin
Specifications
- Breaking Load
- 18140 kg
- Working Load Limit
- 9070 kg
- Weight
- 2.87 kg
- Dimension A (see drawing)
- 44.5 mm
- Dimension B (see drawing)
- 50.8 mm
- Dimension C (see drawing)
- 257 mm
- Dimension D (see drawing)
- 19 mm
- Dimension E (see drawing)
- 36 mm
From the Tylaska catalogue.
