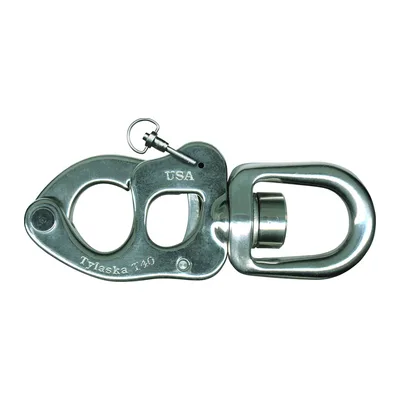

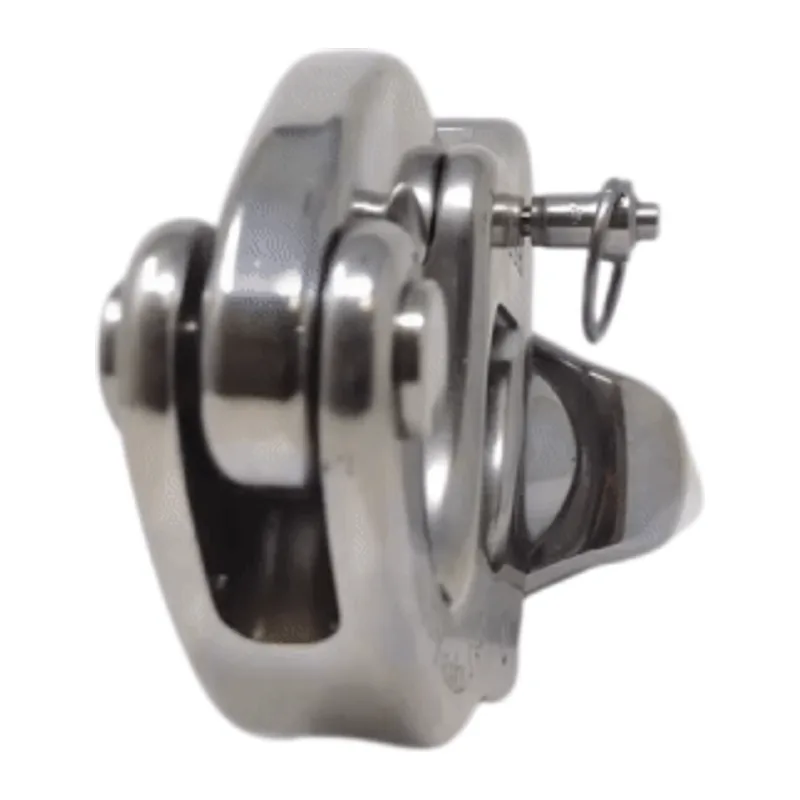

Tylaska TY1040-ST40 Standard Bail Trigger Snap Shackle
The Tylaska TY1040-S T40 Standard Bail Trigger Snap Shackle, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY1040-S
- Family
- Tylaska
About this part
For boats 100ft+
Breaking load – 40,000 lb
100% proof tested to max working load
Heat treated 17-4 PH stainless steel
Available in standard, large, and clevis bail types
Included trigger-locking pin
Specifications
- Breaking Load
- 18140 kg
- Working Load Limit
- 9070 kg
- Weight
- 2.34 kg
- Dimension A (see drawing)
- 44.5 mm
- Dimension B (see drawing)
- 45.5 mm
- Dimension C (see drawing)
- 241 mm
From the Tylaska catalogue.
