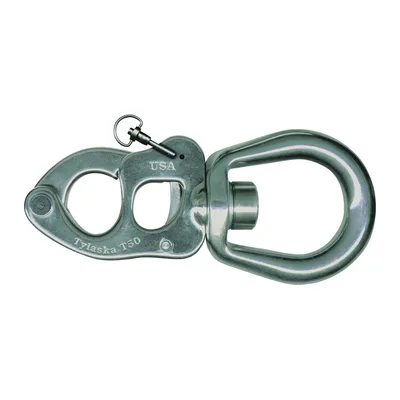

Tylaska TY1050-LT50 Large Bail Trigger Snap Shackle
The Tylaska TY1050-L T50 Large Bail Trigger Snap Shackle, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY1050-L
- Family
- Tylaska
About this part
For boats 100ft +
Breaking load – 50,000 lb
100% proof tested to max working load
Heat treated 17-4 PH stainless steel
Included trigger-locking pin
Specifications
- Breaking Load
- 22680 kg
- Working Load Limit
- 11340 kg
- Weight
- 4.15 kg
- Dimension A (see drawing)
- 49.5 mm
- Dimension B (see drawing)
- 75.7 mm
- Dimension C (see drawing)
- 301 mm
From the Tylaska catalogue.
