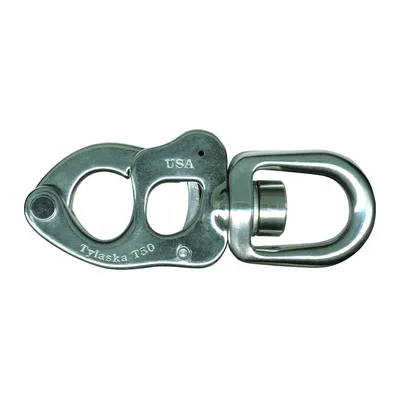

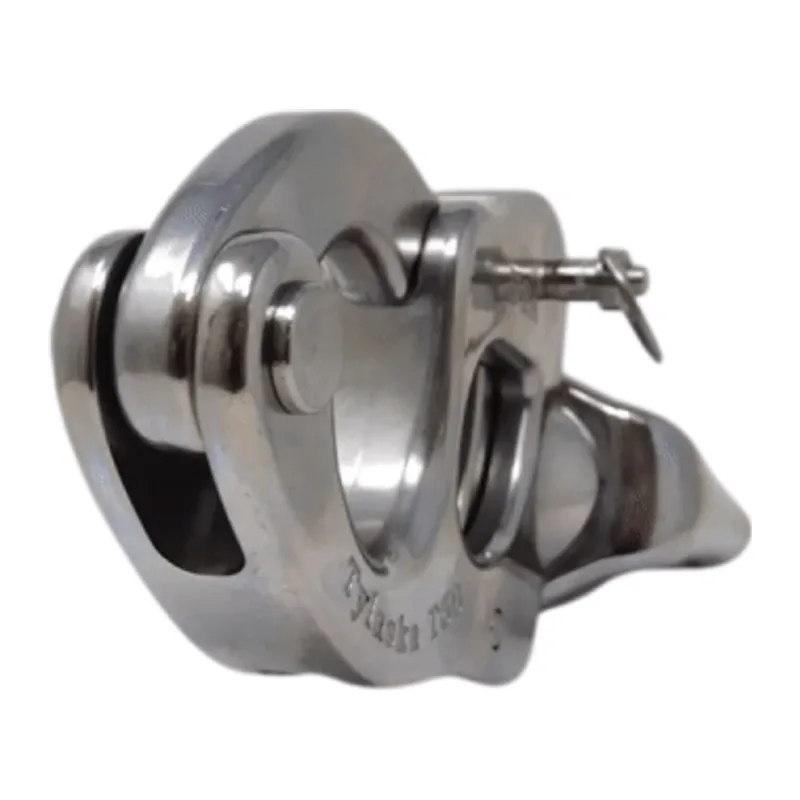

    Tylaska TY1050-S T50 Standard Bail Trigger Snap Shackle
    Tylaska TY1050-S T50 Standard Bail Trigger Snap Shackle
    Tylaska TY1050-S T50 Standard Bail Trigger Snap Shackle

    Tylaska TY1050-ST50 Standard Bail Trigger Snap Shackle

    The Tylaska TY1050-S T50 Standard Bail Trigger Snap Shackle, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.

    $1,795.29

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    TY1050-S
    Family
    Tylaska

    About this part

    For boats 100ft+

    Breaking load – 50,000 lb

    100% proof tested to max working load

    Heat treated 17-4 PH stainless steel

    Available in standard, large, and clevis bail types

    Included trigger-locking pin

    Specifications

    Breaking Load
    22680 kg
    Working Load Limit
    11340 kg
    Weight
    3.2 kg
    Dimension A (see drawing)
    49.5 mm
    Dimension B (see drawing)
    50.8 mm
    Dimension C (see drawing)
    294 mm

    From the Tylaska catalogue.

    Goes with TY1050-S

    Tylaska TY1005-CM T5 Clevis Bail Trigger Snap Shackle – 6mm Pin
    TY1005-CM T5 Clevis Bail Trigger Snap Shackle – 6mm Pin $258.49 Ships in about 3 days
    Tylaska TY1005-CR T5 Clevis Bail Trigger Snap Shackle – 1/4″ Pin
    TY1005-CR T5 Clevis Bail Trigger Snap Shackle – 1/4″ Pin $258.49 Ships in about 3 days
    Tylaska TY1005-L T5 Large Bail Trigger Snap Shackle, Polished Stainless
    TY1005-L T5 Large Bail Trigger Snap Shackle, Polished Stainless $253.65 Ships in about 3 days
    Tylaska TY1005-S T5 Standard Bail Trigger Snap Shackle, Polished Stainless
    TY1005-S T5 Standard Bail Trigger Snap Shackle, Polished Stainless $241.58 Ships in about 3 days
