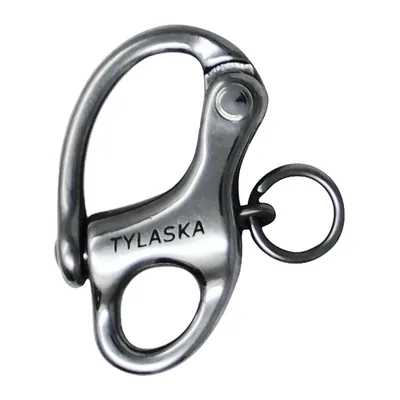

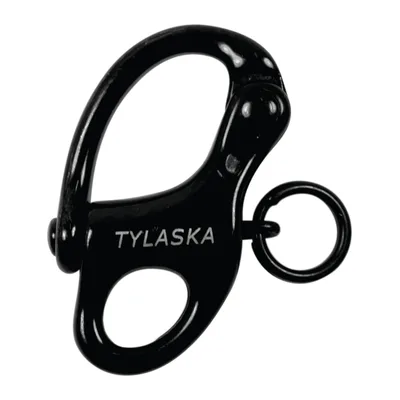

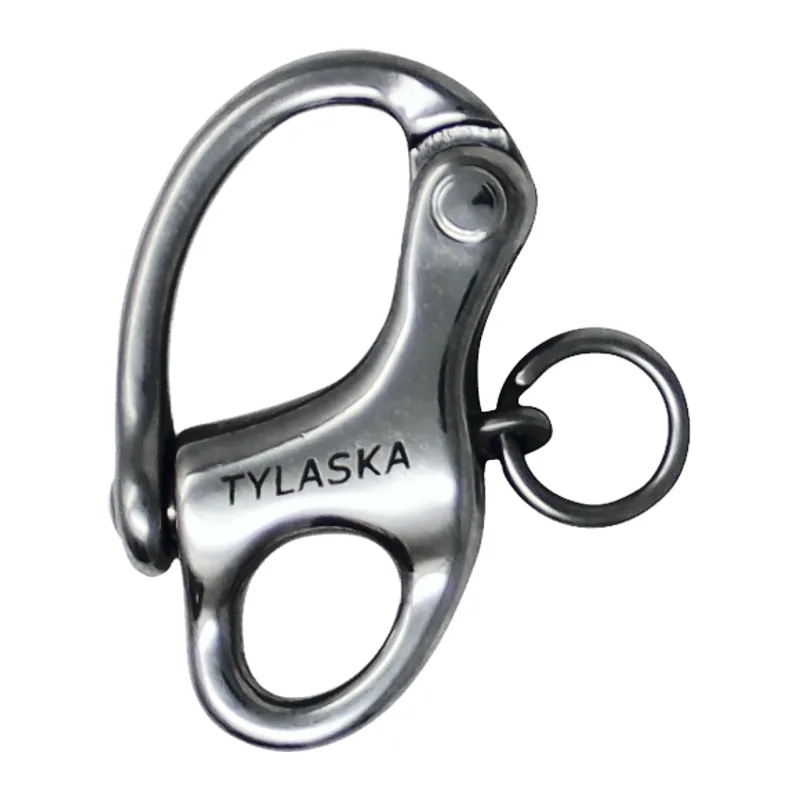

Tylaska TY1102-BLCR2 Snap Shackle, Black Oxide
The Tylaska TY1102-BL CR2 Snap Shackle, Black Oxide, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Finish
Black OxidePolished
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY1102-BL
- Family
- Tylaska
About this part
100% proof loading to maximum safe working load
High strength 17-4 PH stainless steel
Incredible strength for its size, 1000lb working load, 2000lb breaking load
Fully opening clevis for easier attachment and removal
Sleek snag-resistant geometry
Captive plunger-pin mechanism with firm spring action
Available with a polished, matte gray, or black oxide finish
Specifications
- Breaking Load
- 910 kg
- Working Load Limit
- 455 kg
- Weight
- 12 g

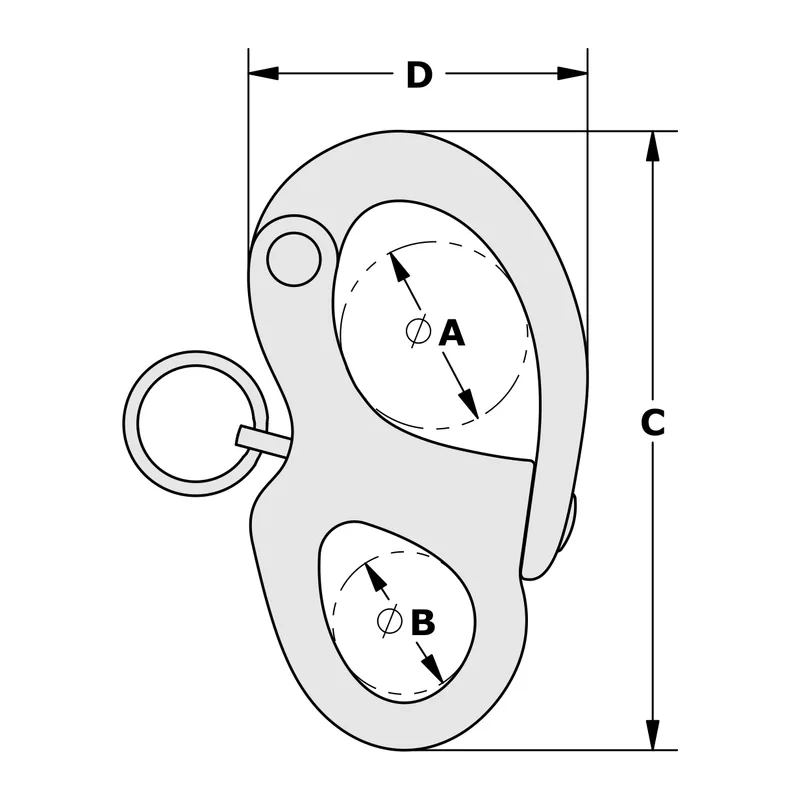

- Dimension A (see drawing)
- 9.7 mm
- Dimension B (see drawing)
- 6.6 mm
- Dimension C (see drawing)
- 35.1 mm
- Dimension D (see drawing)
- 20.3 mm
From the Tylaska catalogue.
