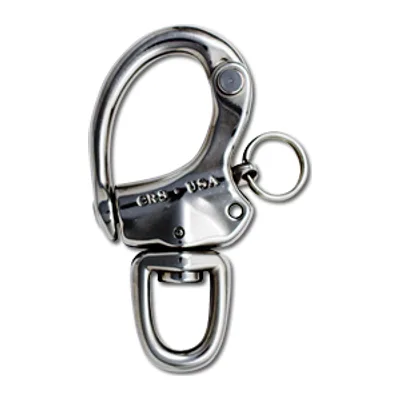

    Tylaska TY1108-S CR8 Swivel Bail Snap Shackle
    Tylaska TY1108-S CR8 Swivel Bail Snap Shackle

    Tylaska TY1108-SCR8 Swivel Bail Snap Shackle

    The Tylaska TY1108-S CR8 Swivel Bail Snap Shackle, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.

    $122.62

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    TY1108-S
    Family
    Tylaska

    About this part

    High strength 17-4 PH stainless steel

    Sleek snag-resistant geometry

    Included lanyard hole for extra secure closure with a zip tie or safety wire

    Captive plunger-pin mechanism with firm spring action

    Also available with black oxide finish

    Specifications

    Breaking Load
    4000 kg
    Working Load Limit
    2000 kg
    Weight
    128 g

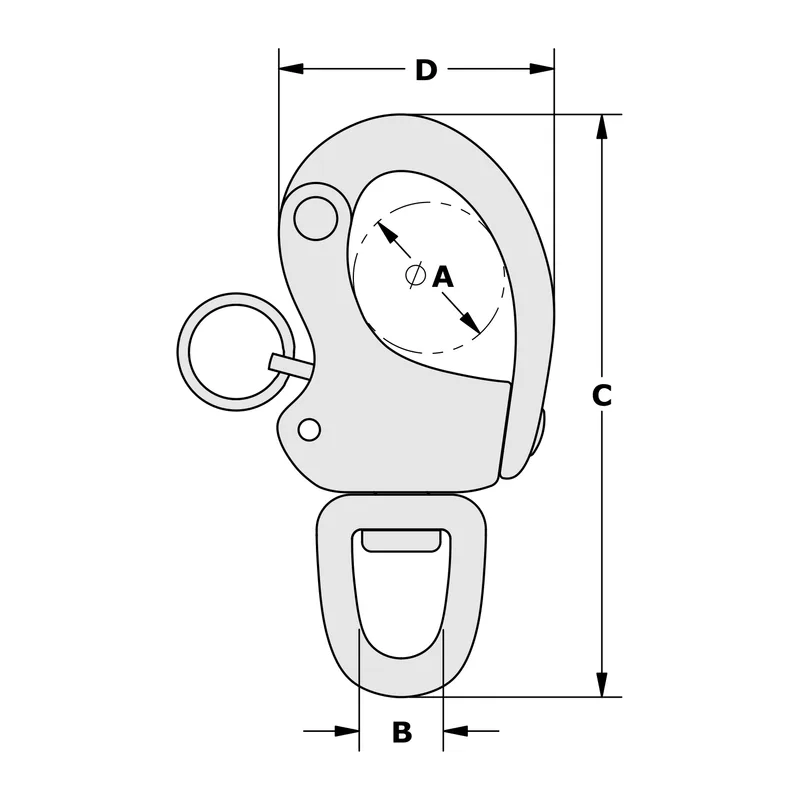

    Dimension A (see drawing)
    24.4 mm
    Dimension B (see drawing)
    13.7 mm
    Dimension C (see drawing)
    92.7 mm
    Dimension D (see drawing)
    44.2 mm

    From the Tylaska catalogue.
