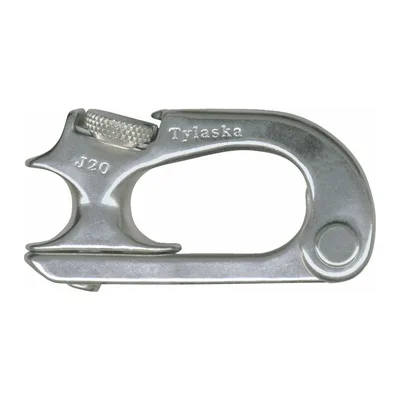

    Tylaska TY1320 J20 Snap Shackle
    Tylaska TY1320 J20 Snap Shackle

    Tylaska TY1320J20 Snap Shackle

    The Tylaska TY1320 J20 Snap Shackle, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.

    $261.58

    Ships in about 3 business days, plus transit.

    Returns within 30 days of delivery. Returns and exchanges

    Part number
    TY1320
    Family
    Tylaska

    About this part

    Easy to use working mechanism

    Heat treated 17-4 PH stainless steel

    Specifications

    Breaking Load
    9070kg
    Working Load Limit
    3170 kg
    Weight
    167 g
    Max Line Size
    14 mm
    Dimension A (see drawing)
    21.3 mm
    Dimension B (see drawing)
    16 mm
    Dimension C (see drawing)
    77 mm
    Dimension D (see drawing)
    38.9 mm
    Dimension E (see drawing)
    16 mm

    From the Tylaska catalogue.
