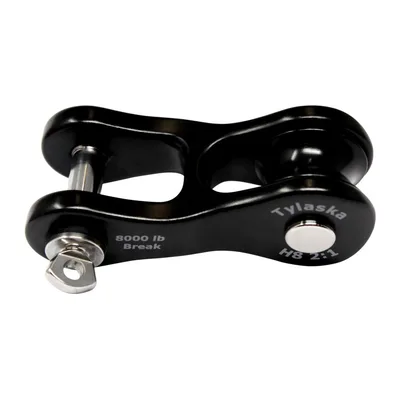

Tylaska TY1508H8 2:1 Halyard Shackle
The Tylaska TY1508 H8 2:1 Halyard Shackle, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY1508
- Family
- Tylaska
About this part
For boats 24-36 ft
Captive stainless steel cross pin
Machined 6061 aluminum
Recessed thread allows for full throat opening
Hard-coat anodized for maximum coating durability
Available with a fixed thimble or a 2:1 sheave
Split 2:1 model opens like a snatch block for easy installation and removal
Specifications
- Breaking Load
- 3630 kg
- Working Load Limit
- 1810 kg
- Weight
- 109 g
- Max Line Size
- 12 mm
- Dimension A (see drawing)
- 21.2 mm
- Dimension B (see drawing)
- 15 mm
- Dimension C (see drawing)
- 84.1 mm
- Dimension D (see drawing)
- 33.5 mm
- Dimension E (see drawing)
- 19.3 mm
- Dimension F (see drawing)
- 8.1 mm
From the Tylaska catalogue.
