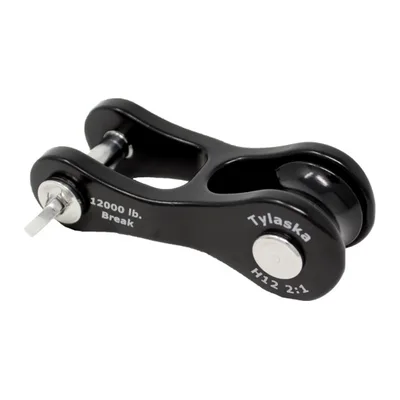

Tylaska TY1512H12 2:1 Halyard Shackle
The Tylaska TY1512 H12 2:1 Halyard Shackle, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY1512
- Family
- Tylaska
About this part
For boats 30-45 ft
Machined 7075 aluminum
Captive stainless steel cross pin
Recessed thread allows for full throat opening
Hard-coat anodized for maximum coating durability
Available with a fixed thimble or 2:1 sheave
Split 2:1 model opens like a snatch block for easy installation and removal
Specifications
- Breaking Load
- 5440 kg
- Working Load Limit
- 2720 kg
- Weight
- 180 g
- Max Line Size
- 14 mm
- Dimension A (see drawing)
- 31.7 mm
- Dimension B (see drawing)
- 16.8 mm
- Dimension C (see drawing)
- 103.6 mm
- Dimension D (see drawing)
- 38.1 mm
- Dimension E (see drawing)
- 22.4 mm
- Dimension F (see drawing)
- 9.7 mm
From the Tylaska catalogue.
