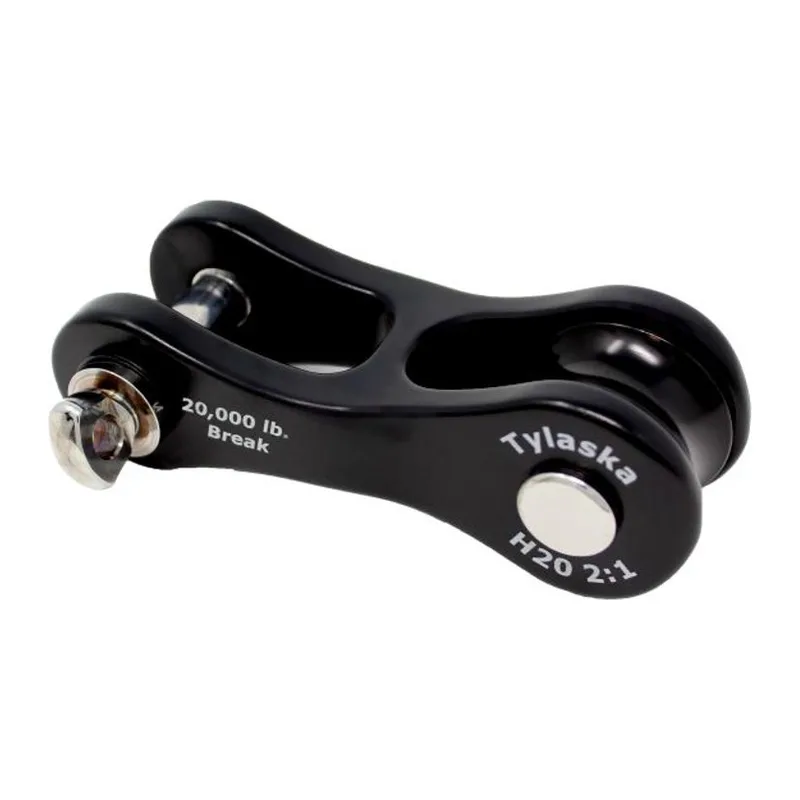

Tylaska TY1520H20 2:1 Halyard Shackle
The Tylaska TY1520 H20 2:1 Halyard Shackle, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY1520
- Family
- Tylaska
About this part
For boats 40-70 ft
Machined 7075 aluminum
Captive stainless steel cross pin
Recessed thread allows for full throat opening
Hard-coat anodized for maximum coating durability
Available with a fixed thimble or 2:1 sheave
Specifications
- Breaking Load
- 9070 kg
- Working Load Limit
- 4540 kg
- Weight
- 383 g
- Max Line Size
- 18 mm
- Dimension A (see drawing)
- 38.1 mm
- Dimension B (see drawing)
- 22.2 mm
- Dimension C (see drawing)
- 133.3 mm
- Dimension D (see drawing)
- 46.7 mm
- Dimension E (see drawing)
- 25.4 mm
- Dimension F (see drawing)
- 12.7 mm
From the Tylaska catalogue.
