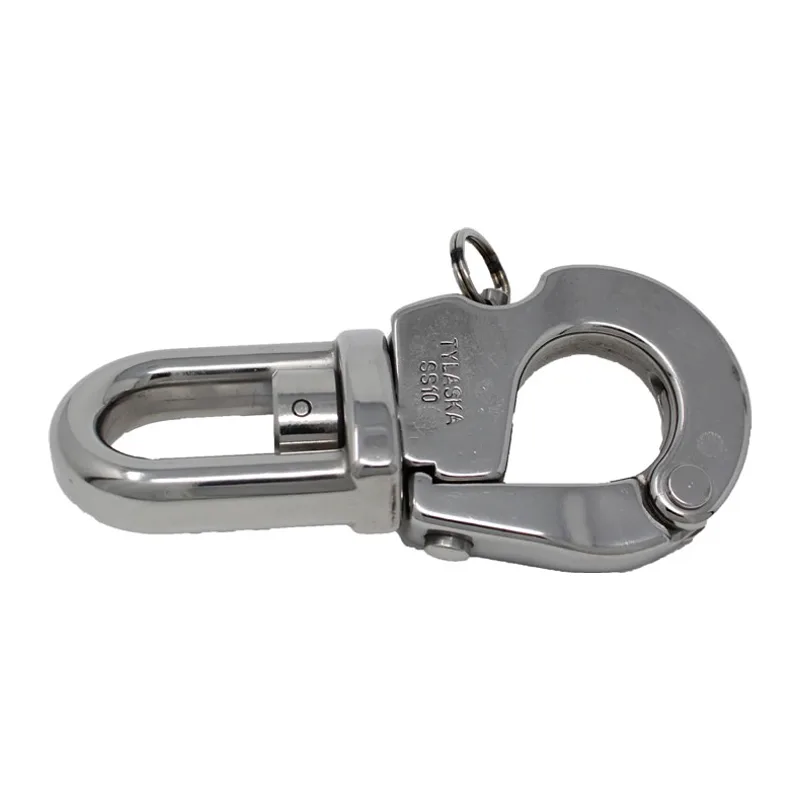

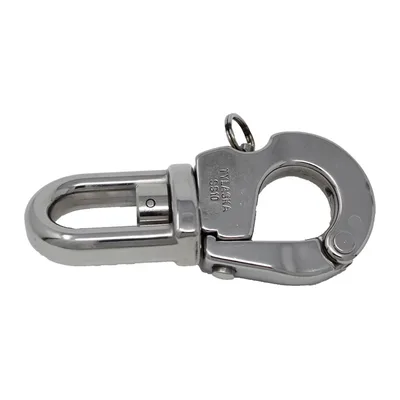

Tylaska TY2010SS10 Plunger Pin Snap Shackle
The Tylaska TY2010 SS10 Plunger Pin Snap Shackle, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY2010
- Family
- Tylaska
About this part
Breaking strength – 20,000 lb
Recommended Safety Factor 8:1
Weight – 1.56 lb
Length – 4.50 in.
Heat treated 17-4 PH stainless steel
Not approved for lifting applications
Specifications
- Breaking Load
- 9072 kg
- Safety Factor (Recommended)
- 8:1
- Weight
- 0.71 kg

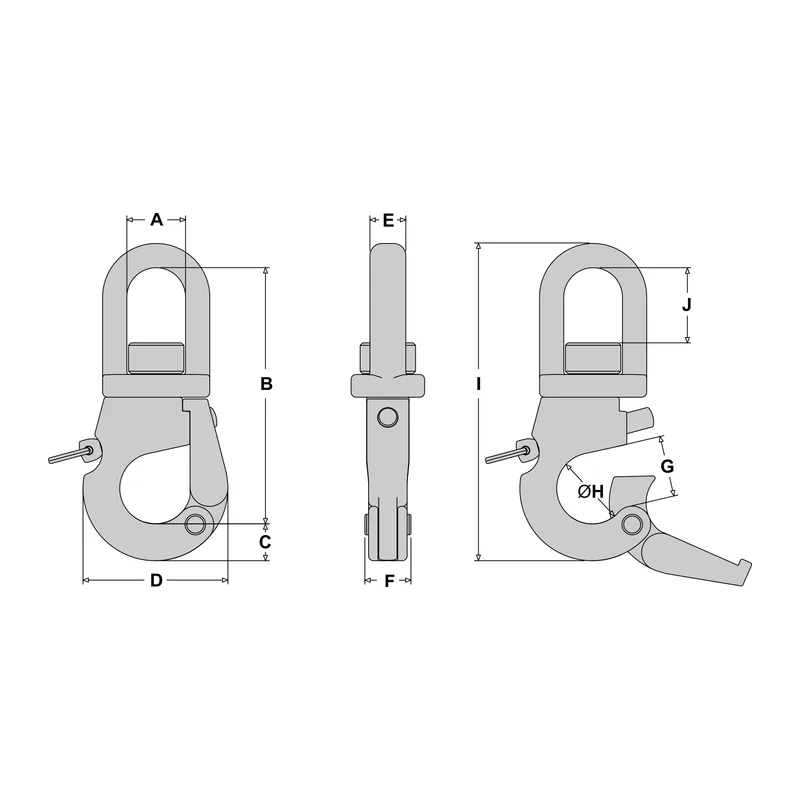

- Dimension A (see drawing)
- 23.1 mm
- Dimension B (see drawing)
- 111.1 mm
- Dimension C (see drawing)
- 13.5 mm
- Dimension D (see drawing)
- 54.4 mm
- Dimension E (see drawing)
- 13.5 mm
- Dimension F (see drawing)
- 16.4 mm
- Dimension G (see drawing)
- 23.7 mm
- Dimension H (see drawing)
- 27.7 mm
From the Tylaska catalogue.
