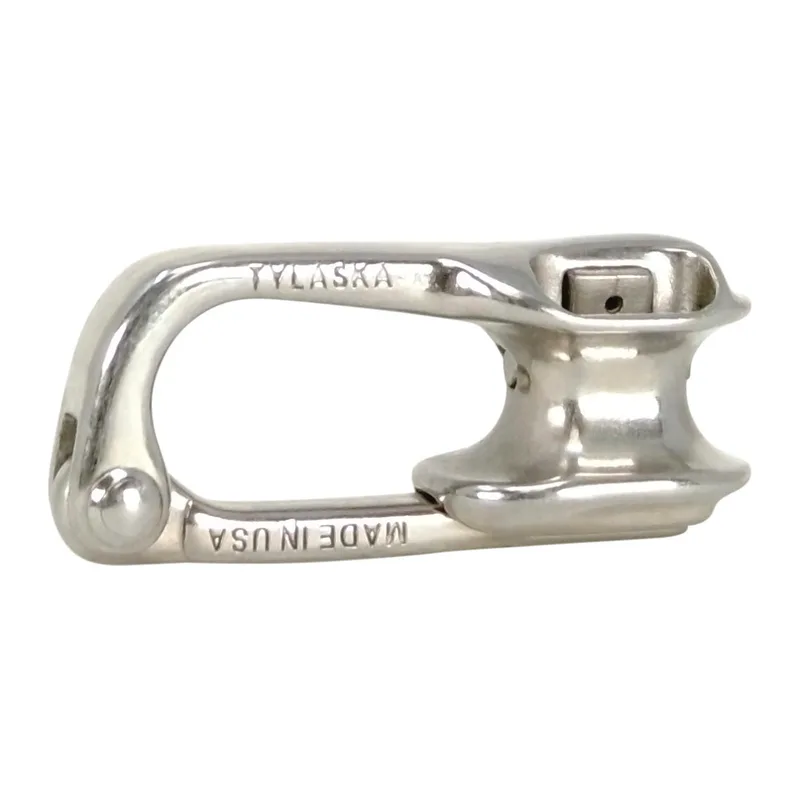

Tylaska TY2205Press Lock Jr Snap Shackle
The Tylaska TY2205 Press Lock Jr Snap Shackle, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY2205
- Family
- Tylaska
About this part
Weight – 2.3 oz
Max Work load – 4,650 lb
Breaking strength – 9,300 lb
Max line Size – 3/8″
Suitable for 24-40 ft boats
Specifications
- Breaking Load
- 4220 kg
- Working Load Limit
- 2110 kg
- Weight
- 65 g
- Max Line Size
- 11 mm

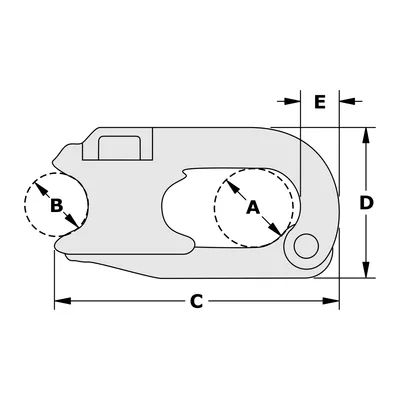

- Dimension A (see drawing)
- 16 mm
- Dimension B (see drawing)
- 12.4 mm
- Dimension C (see drawing)
- 60.7 mm
- Dimension D (see drawing)
- 25.1 mm
- Dimension E (see drawing)
- 5.8 mm
From the Tylaska catalogue.
