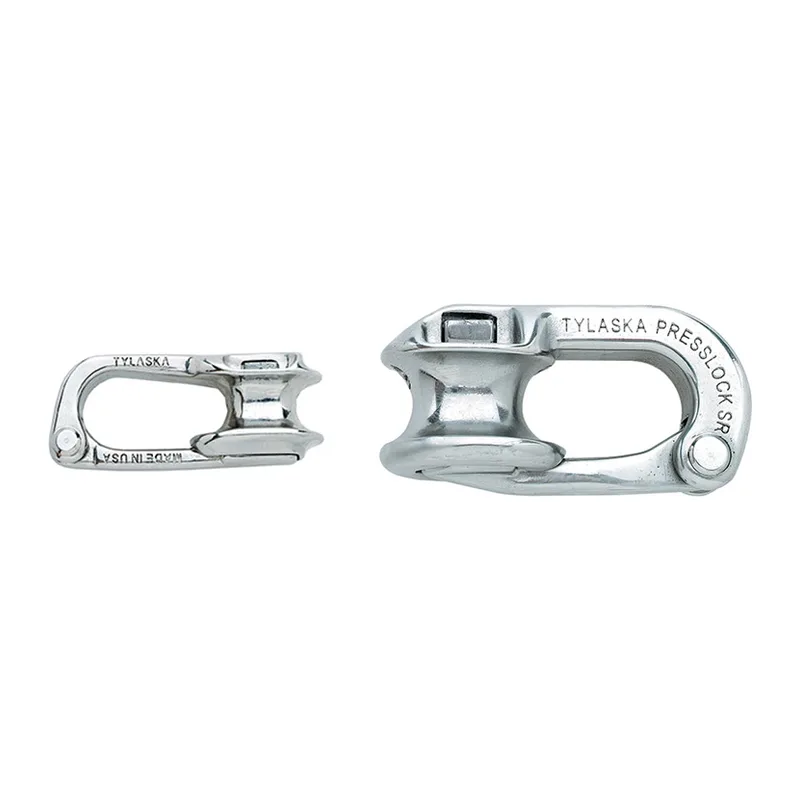

Tylaska TY2210Press Lock Sr Snap Shackle
The Tylaska TY2210 Press Lock Sr Snap Shackle, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY2210
- Family
- Tylaska
About this part
Weight – 5.8 oz
Max Work load – 10,000 lb
Breaking strength – 20,000 lb
Max line Size – 5/8″
Suitable for 40-80 ft boats
Specifications
- Breaking Load
- 9070 kg
- Working Load Limit
- 4540 kg
- Weight
- 164 g
- Max Line Size
- 16 mm

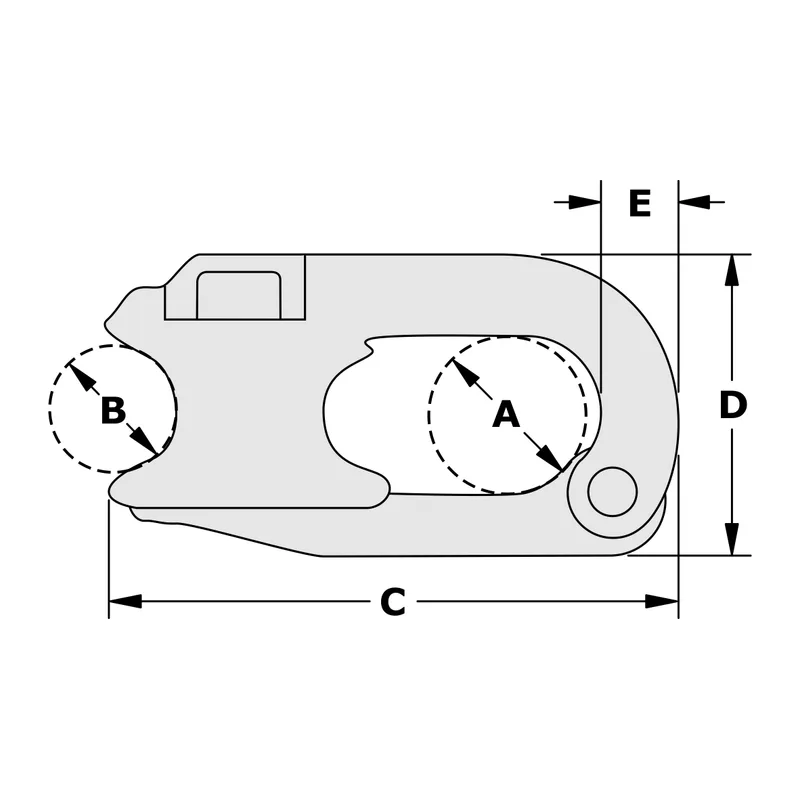

- Dimension A (see drawing)
- 19 mm
- Dimension B (see drawing)
- 17.3 mm
- Dimension C (see drawing)
- 71.1 mm
- Dimension D (see drawing)
- 36.8 mm
- Dimension E (see drawing)
- 11.9 mm
From the Tylaska catalogue.
