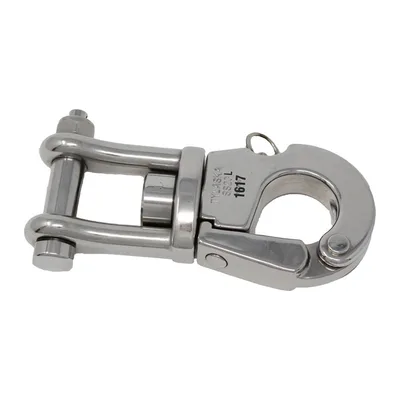

Tylaska TY2020L-C SS20L Clevis Bail Plunger Pin Lifting Hook

Tylaska TY2020L-C SS20L Clevis Bail Plunger Pin Lifting Hook

Tylaska TY2020L-CSS20L Clevis Bail Plunger Pin Lifting Hook

The Tylaska TY2020L-C SS20L Clevis Bail Plunger Pin Lifting Hook, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.

$1,307.40

Ships in about 3 business days, plus transit.

Returns within 30 days of delivery. Returns and exchanges

Compare

Part number: TY2020L-C
Family: Tylaska

About this part

CE Marked Lifting Accessory

WLL 2t

Weight- 1.2 kg

Length- 167mm

Specifications

Working Load: 2 mt
Weight: 1.2 kg

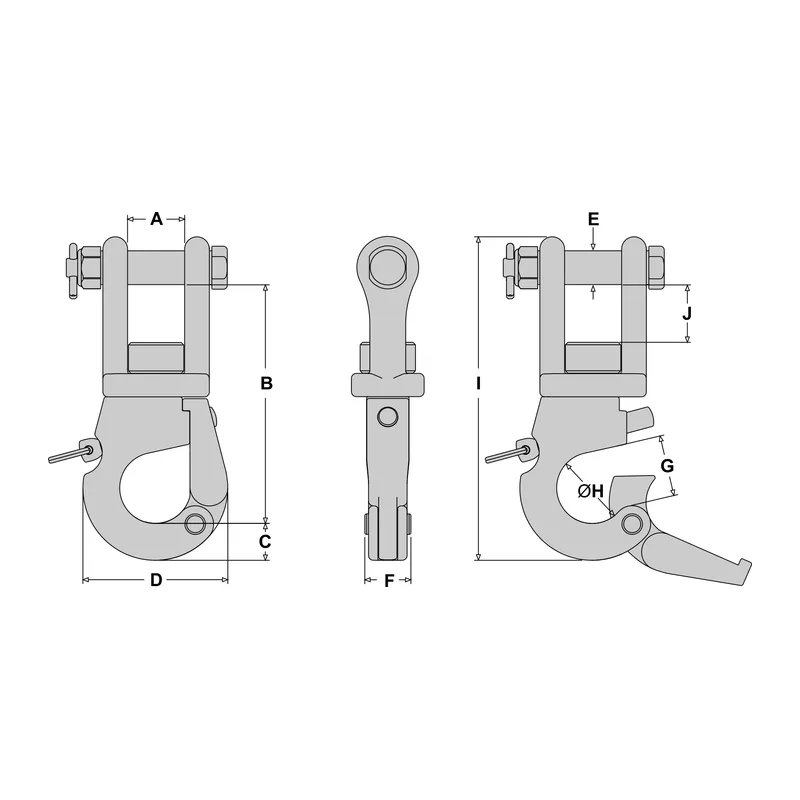

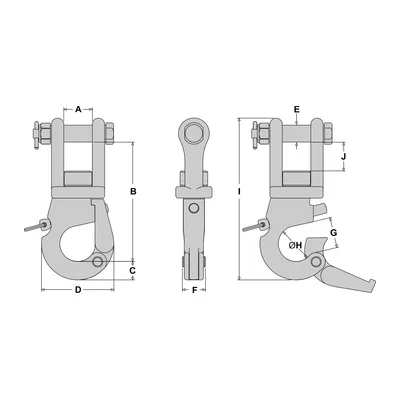

Dimension A (see drawing): 29.3 mm
Dimension B (see drawing): 124.2 mm
Dimension C (see drawing): 18.9 mm
Dimension D (see drawing): 74.4 mm
Dimension E (see drawing): 17.3 mm
Dimension F (see drawing): 24.6 mm
Dimension G (see drawing): 31.4 mm
Dimension H (see drawing): 36.5 mm

From the Tylaska catalogue.
