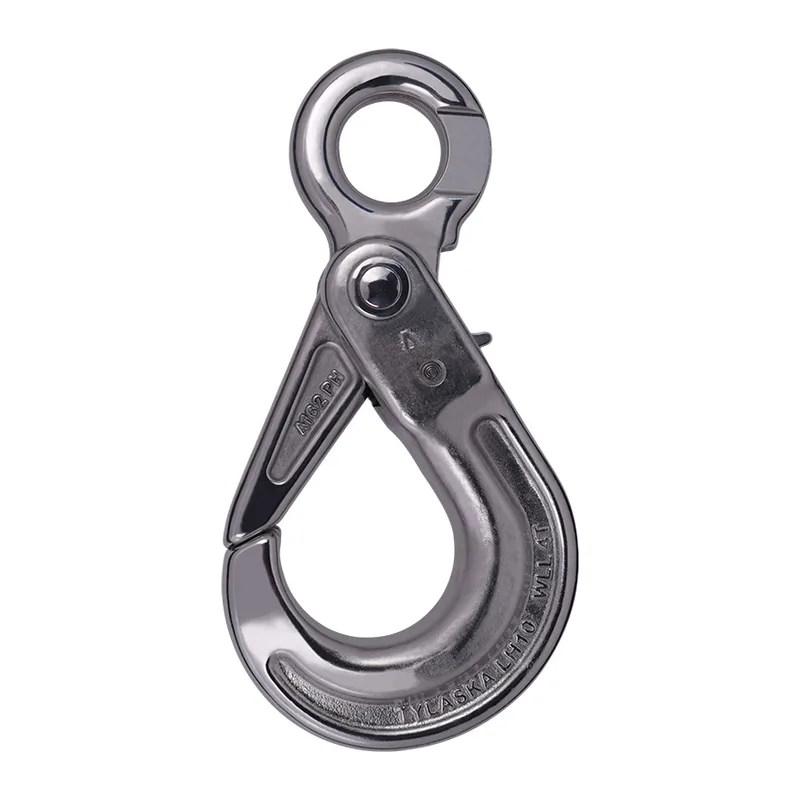

Tylaska TY5010-ELH 10 Stainless Steel Lifting Hook
The Tylaska TY5010-E LH 10 Stainless Steel Lifting Hook, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.
Ships in about 3 business days, plus transit.
Returns within 30 days of delivery. Returns and exchanges
- Part number
- TY5010-E
- Family
- Tylaska
About this part
Fully traceable forged 17-4 PH stainless steel hook and latch.
100% stainless steel components
Suitable for use with Grade 80 and Grade 100 chain.
27% stronger than equivalent size grade 8 hooks.
Available in polished stainless steel or yellow powder coated finish.
Fully replaceable locking mechanism.
Specifications
- Working Load
- 4 mt
- Weight
- 1.7 kg

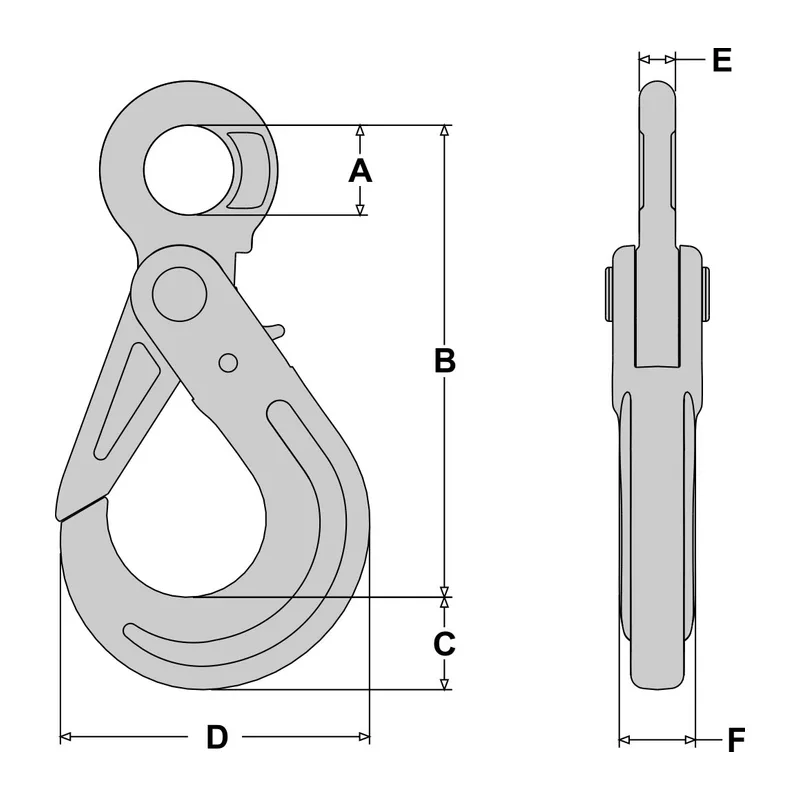

- Dimension A (see drawing)
- 32 mm
- Dimension B (see drawing)
- 166 mm
- Dimension C (see drawing)
- 33 mm
- Dimension D (see drawing)
- 109 mm
- Dimension E (see drawing)
- 14 mm
- Dimension F (see drawing)
- 28 mm
- Dimension G (see drawing)
- 44 mm
- Dimension H (see drawing)
- 53.3 mm
From the Tylaska catalogue.
