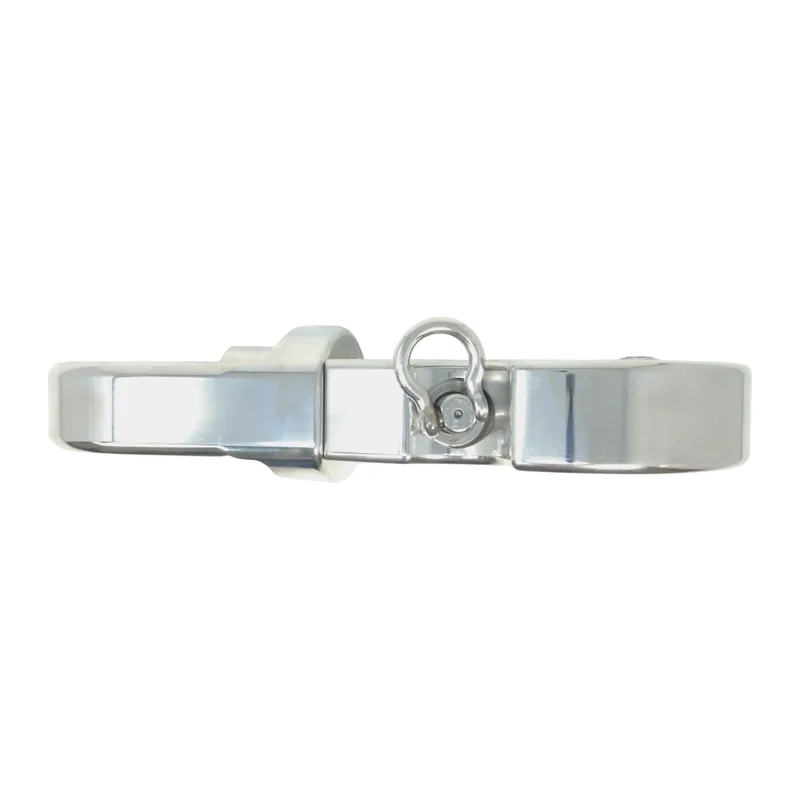

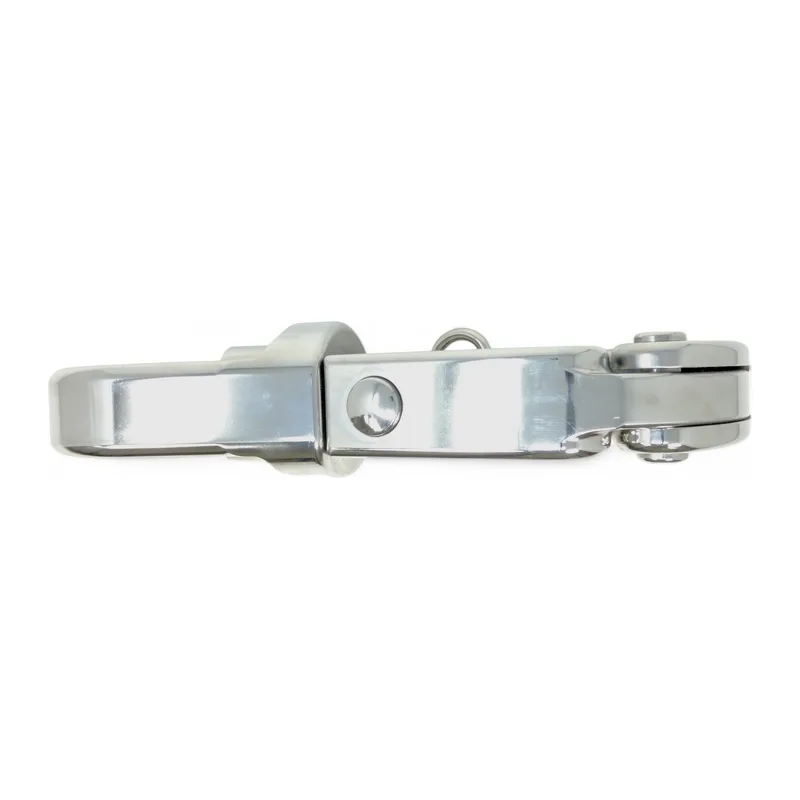

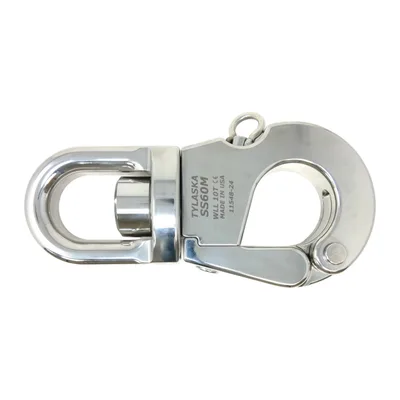

Tylaska TY5160 SS60M Plunger Pin Lifting Hook

Tylaska TY5160 SS60M Plunger Pin Lifting Hook

Tylaska TY5160 SS60M Plunger Pin Lifting Hook

Tylaska TY5160 SS60M Plunger Pin Lifting Hook

Tylaska TY5160SS60M Plunger Pin Lifting Hook

The Tylaska TY5160 SS60M Plunger Pin Lifting Hook, sold at Tylaska's list price by One Design Rigging, an authorized Tylaska dealer. Ships in about 3 business days.

$6,849.50

Ships in about 3 business days, plus transit.

Returns within 30 days of delivery. Returns and exchanges

Compare

Part number: TY5160
Family: Tylaska

About this part

CE Marked Lifting Accessory

WLL 10t

Min. Break Load- 60t

Weight- 7.4 kg

Length- 30 cm

Specifications

Working Load: 10 mt
Weight: 7.45 kg

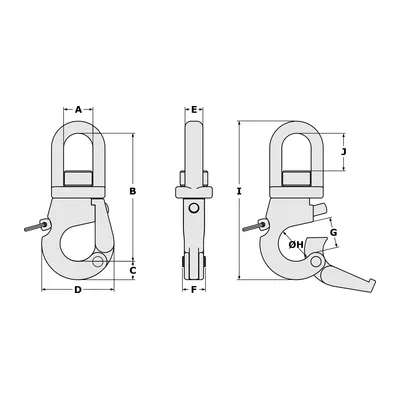

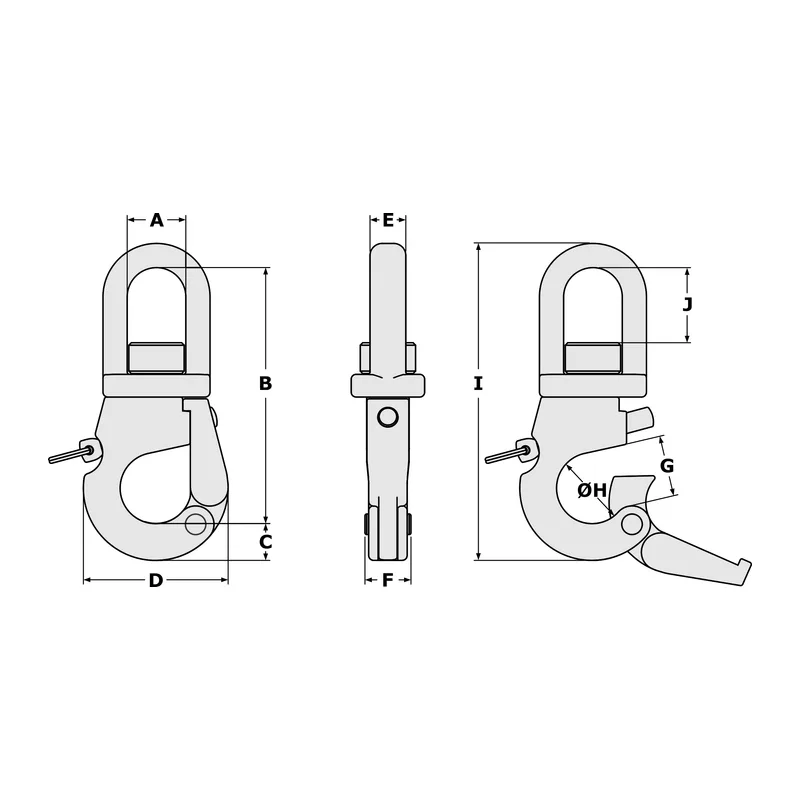

Dimension A (see drawing): 57.7 mm
Dimension B (see drawing): 242.0 mm
Dimension C (see drawing): 36.4 mm
Dimension D (see drawing): 142.4 mm
Dimension E (see drawing): 38.1 mm
Dimension F (see drawing): 40.1 mm
Dimension G (see drawing): 59.5 mm
Dimension H (see drawing): 69.8 mm
Dimension I (see drawing): 300 mm
Dimension J (see drawing): 57.7 mm

From the Tylaska catalogue.
